All diagrams for this model

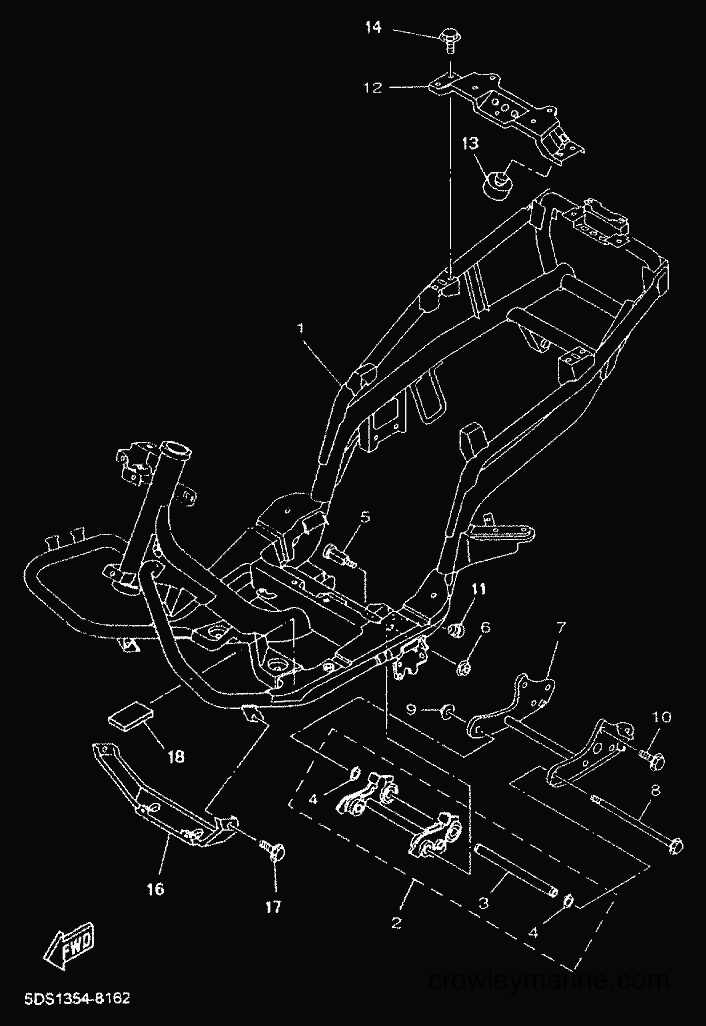

2000 Scooter YP125E - YP125E (5DSC) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP125E (5DSC) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
ENGINE BRACKET COMP. 2
Price unavailable
3
Required: 1
. SPACER, ENGINE MOUNT
Price unavailable
Circle Clip
4
Yamaha Motors
Circle Clip99009-17400-00
Required: 2
. CIRCLIP
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
5
Required: 2
BOLT, ENGINE MOUNTING 1
Price unavailable
6
Required: 2
NUT, SELF-LOCKING
Price unavailable
7
Required: 1
ENGINE BRACKET COMP.
Price unavailable
Washer Based Bolt
8
Yamaha Motors
Washer Based Bolt90105-106A2-00
Required: 1
BOLT, WASHER BASED
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
9
Required: 1
NUT, SELF-LOCKING
Price unavailable
Flange Bolt
10
Yamaha Motors
Flange Bolt 95811-10030-00
Required: 4
BOLT, FLANGE
Supersedes: 95801-10030-00
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
11
Required: 2
STOPPER, MAIN STAND
Price unavailable
12
Required: 1
REINFORCEMENT, TAIL
Price unavailable
13
Required: 2
PAD, SEAT
Price unavailable
95811-06016-00
14
Yamaha Motors
95811-06016-0095801-06016-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
16
Required: 1
BRACKET, RADIATOR
Price unavailable
18
Required: 2
DAMPER, FOOTREST
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
