All diagrams for this model

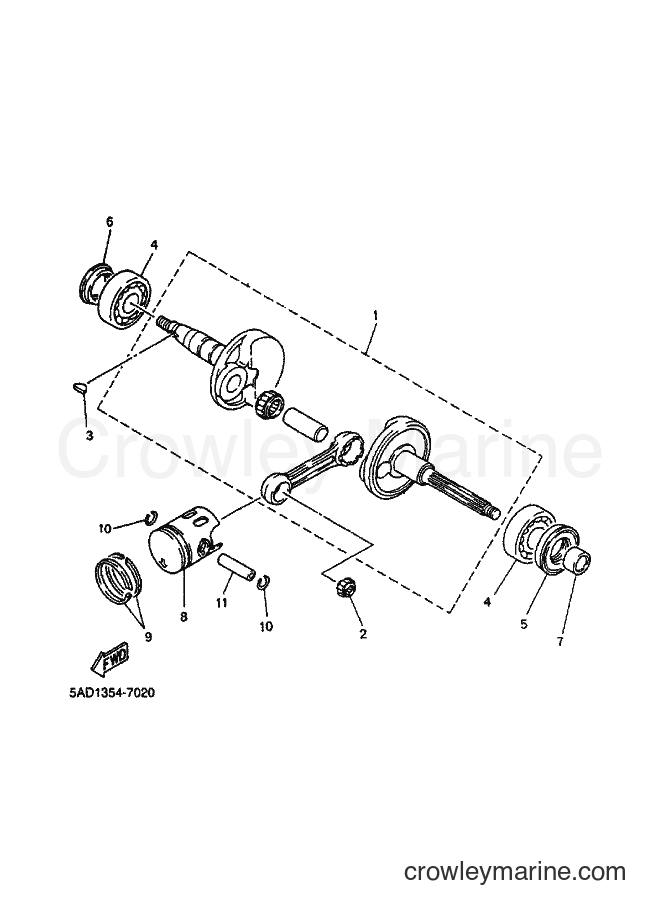

2000 Scooter YN50 - YN50 (5BW3) [010] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50 (5BW3) [010] - CRANKSHAFT & PISTON
Change View:
1
Required: 1
CRANKSHAFT ASSY
Price unavailable
Bearing
2
Yamaha Motors
Bearing93310-210M0-00
Required: 1
BEARING
Cross Ship
Leaves in 2-5 days
$36.99
$31.44
You save $5.55
More details
Woodruff Key
3
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
Cross Ship
Leaves in 2-5 days
$8.49
$6.79
You save $1.70
More details
BEARING
4
Yamaha Motors
BEARING93306-204XK-00
Required: 2
BEARING
Supersedes: 93306-204X7-00
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
SD-TYPE OIL SEAL
5
Yamaha Motors
SD-TYPE OIL SEAL93102-20896-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
SD-TYPE OIL SEAL
6
Yamaha Motors
SD-TYPE OIL SEAL93101-20844-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
COLLAR
7
Yamaha Motors
COLLAR90387-156U0-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$17.49
$14.87
You save $2.62
More details
8
Required: 1
PISTON (STD)
Price unavailable
Piston (0.50MM O/S)
8
Yamaha Motors
Piston (0.50MM O/S)3CP-11636-09-00
Required: 1
PISTON (0.50MM O/S)
Supersedes: 3CP-11636-00-00
Cross Ship
Leaves in 2-5 days
$47.99
$40.79
You save $7.20
More details
9
Required: 1
. PISTON RING SET (STD)
Price unavailable
Piston Ring Set 2ND
9
Yamaha Motors
Piston Ring Set 2ND260-11601-22-00
Required: 1
. PISTON RING SET (0.50MM O/S)
Supersedes: 260-11610-22-00
Cross Ship
Leaves in 2-5 days
$70.99
$60.34
You save $10.65
More details
10
Required: 2
. CIRCLIP
Price unavailable
11
Required: 1
. PIN, PISTON
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
