2000 Scooter YN50 - YN50 (5BV5) [010] FRONT BRAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

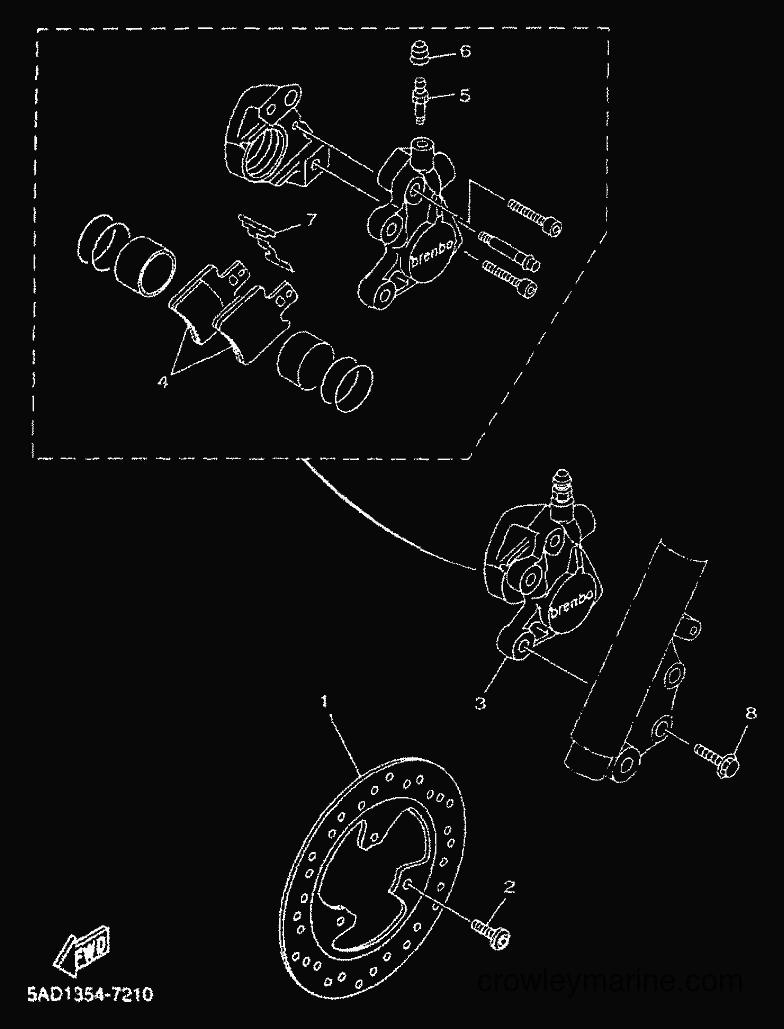

Yamaha Motors YN50 (5BV5) [010] - FRONT BRAKE
Change View:
1
Required: 1
DISC, BRAKE (RIGHT)
Price unavailable
Screw (M8 X 40)
2
Yamaha Motors
Screw (M8 X 40)90111-08834-00
Required: 3
SCREW
Supersedes: 90149-08814-00
Cross Ship
Leaves in 2-5 days
$1.90
$1.61
You save $0.28
More details
3
Required: 1
CALIPER ASSY (LEFT)
Price unavailable
4
Required: 2
. PAD, CALIPER 2
Price unavailable
SCREW, BREED
5
Yamaha Motors
SCREW, BREED4CU-F5824-00-00
Required: 1
. SCREW, BLEED
Cross Ship
Leaves in 2-5 days
$19.99
$16.99
You save $3.00
More details
Cap
6
Yamaha Motors
Cap4CU-F5825-00-00
Required: 1
. CAP
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
Support Pad Assembly
7
Yamaha Motors
Support Pad Assembly4CU-F5919-00-00
Required: 1
. SUPPORT, PAD
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
8
Required: 2
BOLT, FLANGE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
