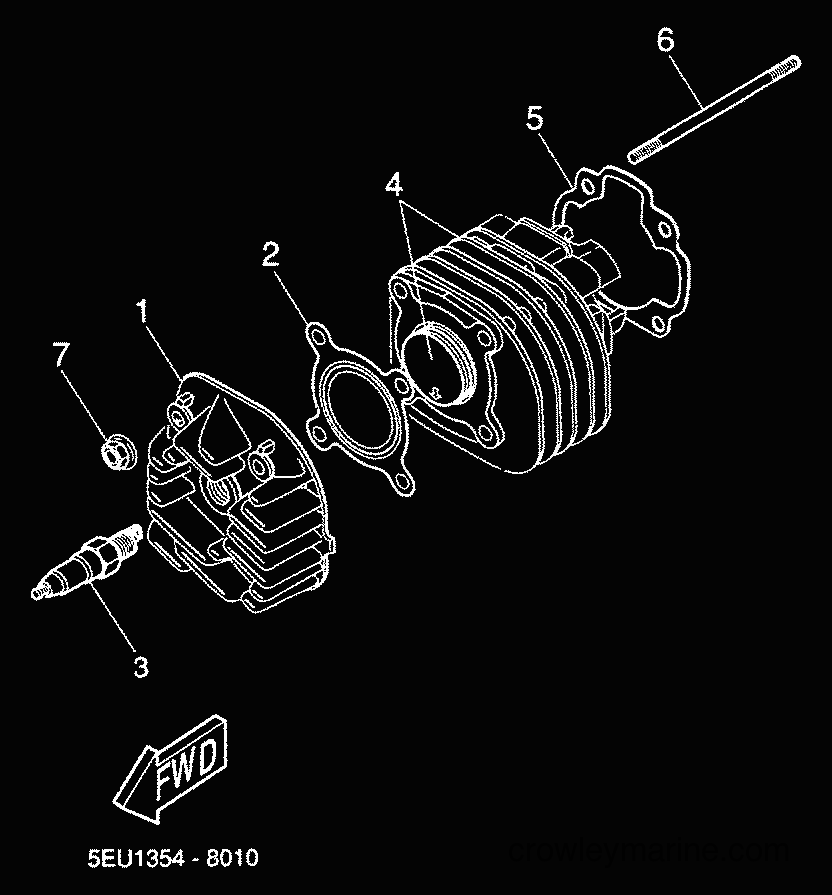

2000 Scooter YH50 - YH50 (5JB4) [020] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YH50 (5JB4) [020] - CYLINDER
Change View:
1
Required: 1
HEAD, CYLINDER 1
Price unavailable
2
Required: 1
GASKET, CYLINDER HEAD 1
Price unavailable
3
Required: 1
PLUG, SPARK
Price unavailable
4
Required: 2
. CIRCLIP
Price unavailable
Piston (Standard)
4
Yamaha Motors
Piston (Standard)4SB-E1631-00-00
Required: 1
. PISTON (STD)
Cross Ship
Leaves in 2-5 days
$164.99
$140.24
You save $24.75
More details
4
Required: 1
CYLINDER 1
Price unavailable
Piston Ring Set (Standard)
4
Yamaha Motors
Piston Ring Set (Standard)4SB-E1603-00-00
Required: 1
. PISTON RING SET (STD)
Cross Ship
Leaves in 2-5 days
$42.99
$36.54
You save $6.45
More details
Piston Pin
4
Yamaha Motors
Piston Pin3VL-E1633-00-00
Required: 1
. PIN, PISTON
Cross Ship
Leaves in 2-5 days
$15.99
$13.59
You save $2.40
More details
5
Required: 1
GASKET, CYLINDER
Price unavailable
Stud Bolt
6
Yamaha Motors
Stud Bolt90116-07353-00
Required: 4
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
SPECIAL SHAPE NUT
7
Yamaha Motors
SPECIAL SHAPE NUT90179-07521-00
Required: 4
NUT
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
