2000 Scooter YH50 - YH50 (5FV3) [010] FRONT BRAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

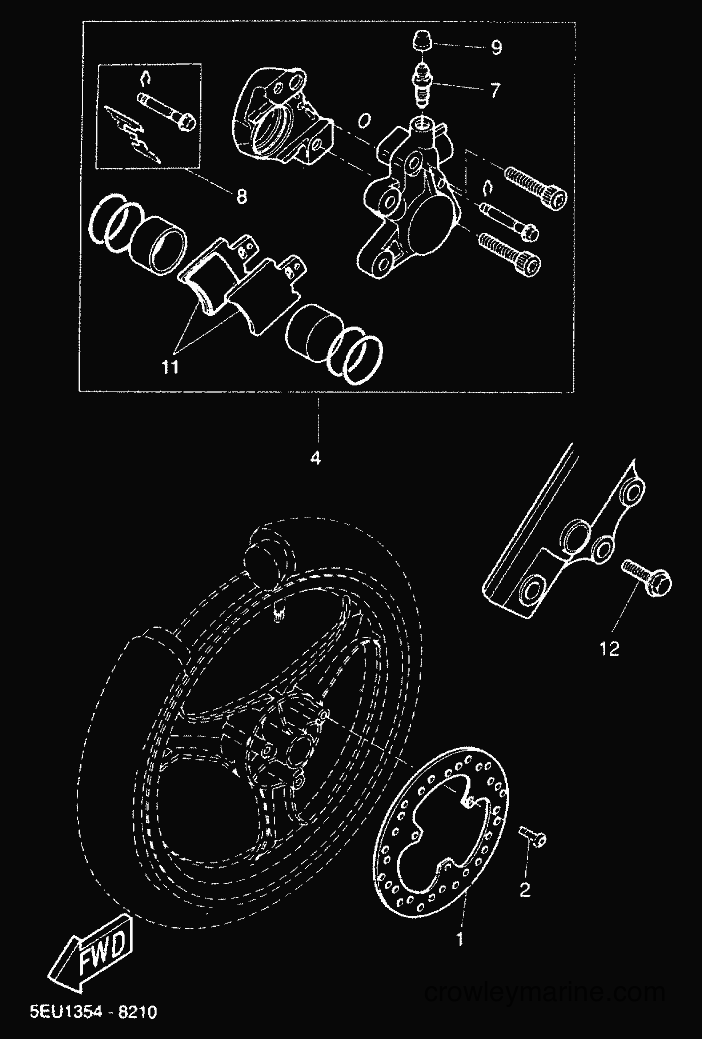

Yamaha Motors YH50 (5FV3) [010] - FRONT BRAKE
Change View:
1
Required: 1
DISC, BRAKE (RIGHT)
Price unavailable
2
Required: 3
BOLT, FITTING
Price unavailable
LEFT CALIPER ASSEMBLY
4
Yamaha Motors
LEFT CALIPER ASSEMBLY4VV-F580T-00-00
Required: 1
CALIPER ASSY (LEFT)
Cross Ship
Leaves in 2-5 days
$202.99
$172.54
You save $30.45
More details
7
Required: 1
SCREW, BLEED
Price unavailable
8
Required: 1
SUPPORT, PAD
Price unavailable
9
Required: 1
CAP
Price unavailable
11
Required: 1
PAD, CALIPER 2
Price unavailable
Washer Based Bolt
12
Yamaha Motors
Washer Based Bolt90105-08X00-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.45
$2.08
You save $0.37
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
