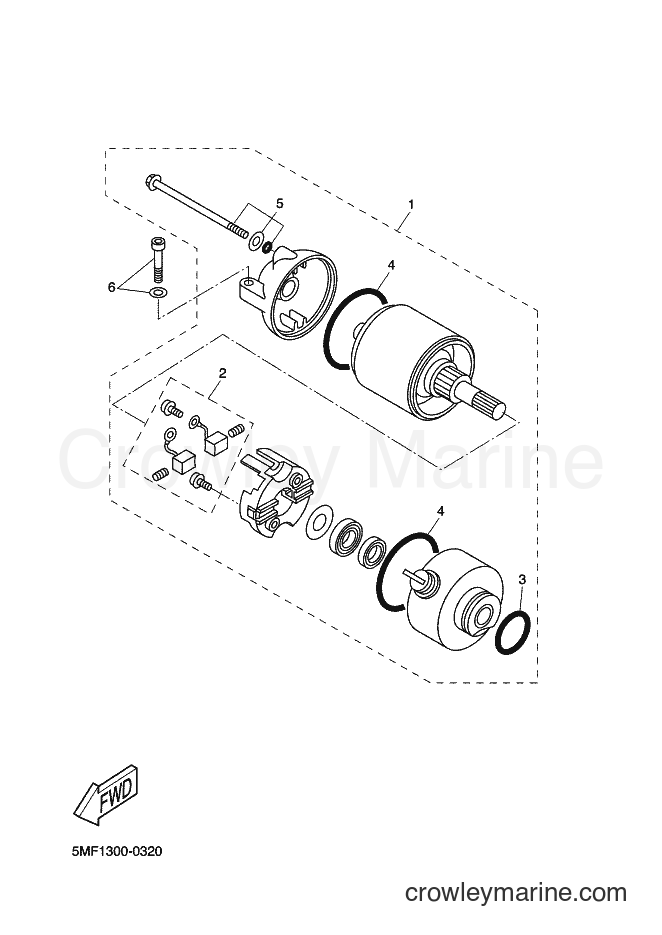

2000 Scooter XN125 - XN125 (5MF1) [030] STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XN125 (5MF1) [030] - STARTER
Change View:
1
Required: 1
STARTING MOTOR ASSY
Price unavailable
2
Required: 1
. BRUSH SET
Price unavailable
O-Ring
3
Yamaha Motors
O-Ring93210-25711-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
O-Ring
4
Yamaha Motors
O-Ring93210-55669-00
Required: 2
. O-RING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Bolt
5
Yamaha Motors
Bolt50M-81828-M0-00
Required: 1
. BOLT 2
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
6
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
