2000 Scooter XN125 - XN125 (5MF1) [030] SCHEINWERFER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

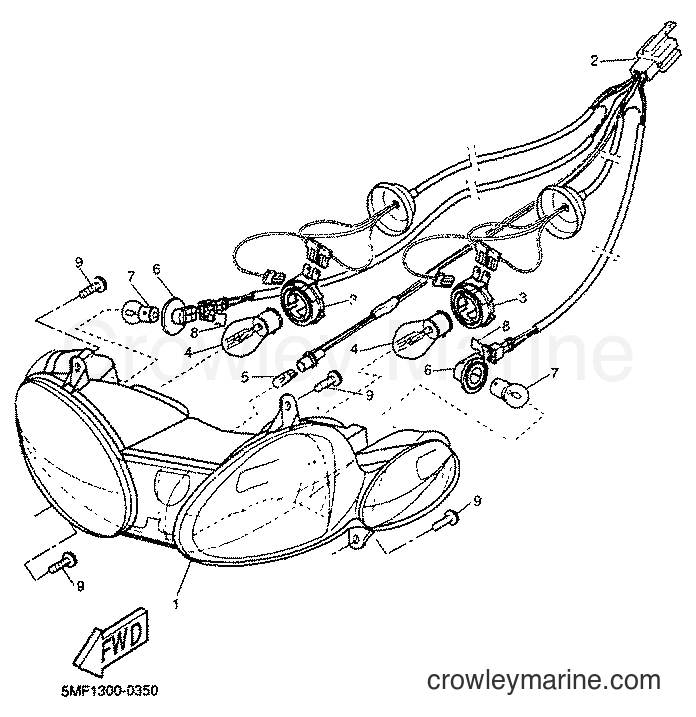

Yamaha Motors XN125 (5MF1) [030] - SCHEINWERFER
Change View:
1
Required: 1
LENS ASSY
Price unavailable
2
Required: 1
CORD ASSY
Price unavailable
3
Required: 2
SOCKET, PILOT LIGHT
Price unavailable
4
Required: 2
BULB HEADLIGHT (12V-35/35W)
Price unavailable
5
Required: 1
BULB (12V-5W)
Price unavailable
6
Required: 2
SPRING SUPPORT
Price unavailable
7
Required: 2
BULB, FLASHER (12V-21W)
Price unavailable
8
Required: 2
CLAMP, CORD
Price unavailable
Tapping Screw
9
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
