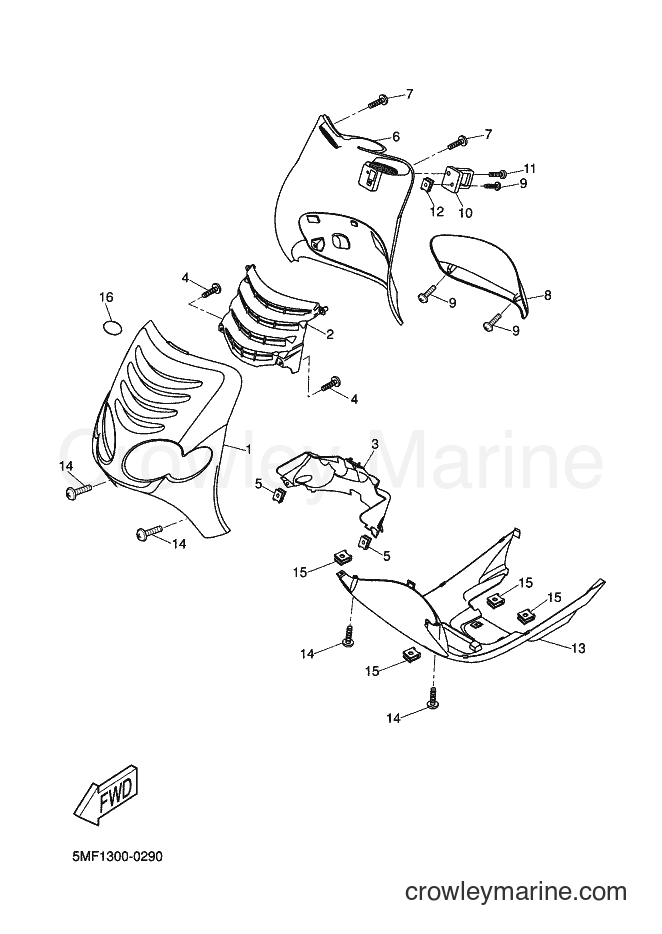

2000 Scooter XN125 - XN125 (5MF1) [030] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XN125 (5MF1) [030] - LEG SHIELD
Change View:
1
Required: 1
BODY, FRONT UPPER 1
Price unavailable
1
Required: 1
BODY, FRONT UPPER 1
Price unavailable
1
Required: 1
BODY, FRONT UPPER 1
Price unavailable
2
Required: 1
GRILL, AIR INTAKE 1
Price unavailable
3
Required: 1
PANEL, INNER 1
Price unavailable
Tapping Screw
4
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
Spring Nut
5
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
6
Required: 1
LEG SHIELD 2
Price unavailable
6
Required: 1
LEG SHIELD 2
Price unavailable
6
Required: 1
LEG SHIELD 2
Price unavailable
7
Required: 2
SCREW, TAPPING
Price unavailable
8
Required: 1
LID
Price unavailable
8
Required: 1
LID
Price unavailable
8
Required: 1
LID
Price unavailable
9
Required: 3
SCREW, TAPPING
Price unavailable
10
Required: 1
HOOK
Price unavailable
11
Required: 1
SCREW, BINDING
Price unavailable
Spring Nut
12
Yamaha Motors
Spring Nut90183-05X03-00
Required: 1
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
13
Required: 1
COVER, UNDER
Price unavailable
14
Required: 2
SCREW, TAPPING
Price unavailable
Spring Nut
15
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
16
Required: 1
EMBLEM, YAMAHA
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
