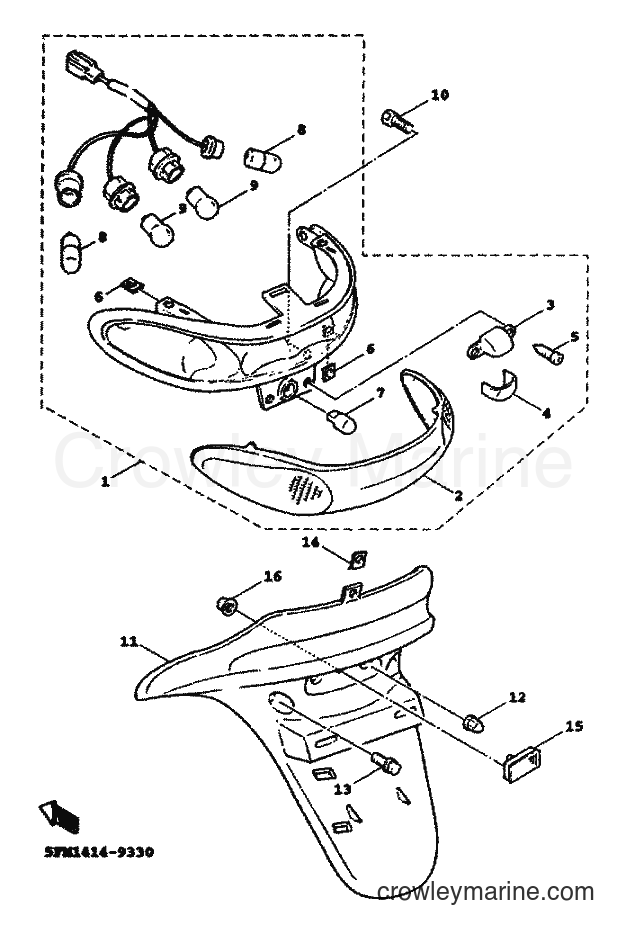

2000 Scooter XC125A - XC125A (5MJ7) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC125A (5MJ7) [010] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT ASSY
Price unavailable
2
Required: 1
. LENS ASSY
Price unavailable
3
Required: 1
. LENS, LICENCE LIGHT
Price unavailable
4
Required: 1
. CORD ASSY, LICENCE LIGHT
Price unavailable
5
Required: 2
. SCREW, TAPPING
Price unavailable
7
Required: 2
. BULB (12V-5W)
Price unavailable
Flasher Bulb (12v)
8
Yamaha Motors
Flasher Bulb (12v)5FM-H3311-00-00
Required: 2
. BULB, FLASHER
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
9
Required: 2
. BULB
Price unavailable
BOLT
10
Yamaha Motors
BOLT90109-063F1-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details
11
Required: 1
BRACKET, LICENSE
Price unavailable
12
Required: 2
NUT, CROWN
Price unavailable
Flange Bolt
13
Yamaha Motors
Flange Bolt95807-06016-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
REAR REFLECTOR ASSEMBLY
15
Yamaha Motors
REAR REFLECTOR ASSEMBLY3KW-H5130-00-00
Required: 1
REAR REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$3.15
$2.68
You save $0.47
More details
FLANGE NUT (4GB)
16
Yamaha Motors
FLANGE NUT (4GB)95707-05300-00
Required: 1
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
