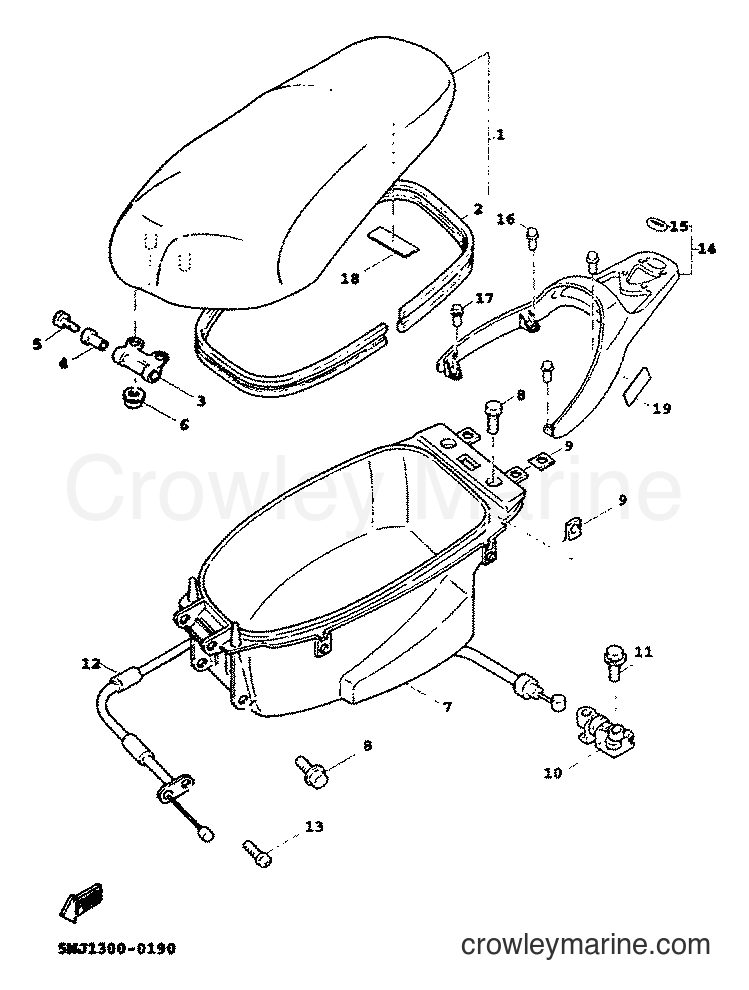

2000 Scooter XC125A - XC125A (5MJ5) [010] SEAT diagram
![Yamaha Motors XC125A (5MJ5) [010] - SEAT](https://cdn.crowleymarine.com/yamaha/8NSHatPQ.png)
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
. SEAL
Price unavailable
3
Required: 1
HINGE, SEAT
Price unavailable
4
Required: 2
COLLAR
Price unavailable
$0.85
You save $0.15
$8.92
You save $1.57
7
Required: 1
BOX COMP.
Price unavailable
$2.63
You save $0.47
9
Yamaha Motors
Spring Nut90183-05042-00
Required: 6
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
10
Yamaha Motors
SEAT LOCK ASSEMBLY5ML-F4780-00-00
Required: 1
SEAT LOCK ASSY
Supersedes: 4UE-F4780-02-00
$16.99
You save $3.00
11
Yamaha Motors
Flange Bolt95817-06014-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06014-00
In stock
Only 1 remaining
$2.38
You save $0.42
12
Required: 1
CABLE, SEAT LOCK
Price unavailable
13
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98507-05010-00
In stock
Only 4 remaining
$3.91
You save $0.69
14
Required: 1
CARRIER ASSY
Price unavailable
15
Required: 1
. GRAPHIC 3
Price unavailable
In stock
Only 1 remaining
$8.92
You save $1.57
In stock
Only 2 remaining
$2.98
You save $0.52
18
Required: 1
LABEL, TIRE
Price unavailable
19
Required: 1
LABEL, CAUTION
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
