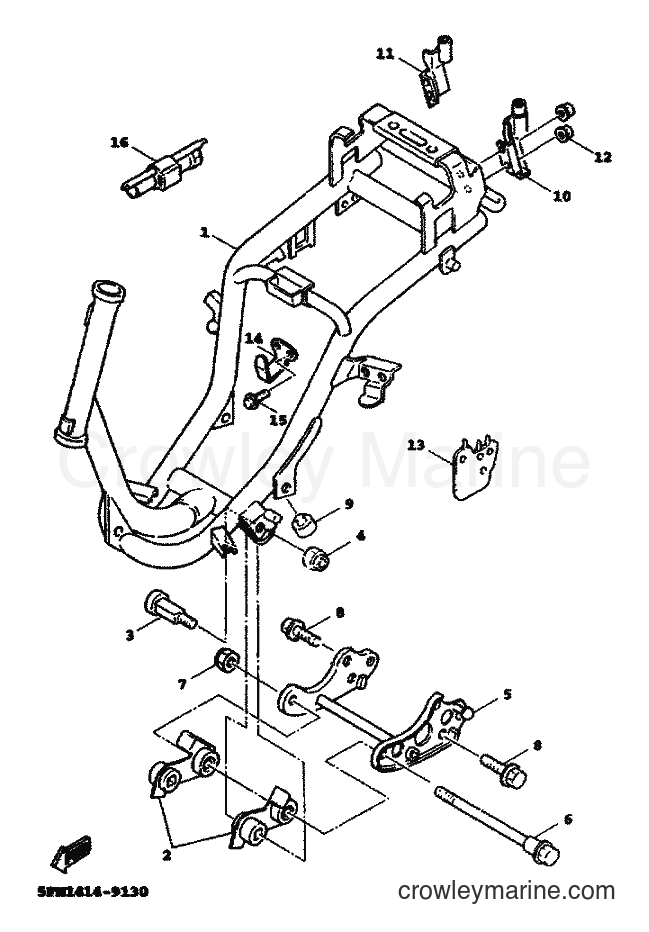

2000 Scooter XC125A - XC125A (5MJ2) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC125A (5MJ2) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
Engine Bracket Com
2
Yamaha Motors
Engine Bracket Com4TE-F1420-31-00
Required: 1
ENGINE BRACKET COMP. 2
Supersedes: 4TE-F1420-11-00
Cross Ship
Leaves in 2-5 days
$70.99
$60.34
You save $10.65
More details
ENGINE MOUNTING BOLT
3
Yamaha Motors
ENGINE MOUNTING BOLT4CW-F1481-00-00
Required: 2
BOLT, ENGINE MOUNTING 1
Cross Ship
Leaves in 2-5 days
$1.50
$1.27
You save $0.23
More details
5
Required: 1
ENGINE BRACKET COMP.
Price unavailable
Flange Bolt
6
Yamaha Motors
Flange Bolt90105-10836-00
Required: 1
BOLT, WASHER BASED
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
Flange Bolt
8
Yamaha Motors
Flange Bolt95817-10030-00
Required: 4
BOLT, FLANGE
Supersedes: 95807-10030-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
MAIN STAND STOPPER
9
Yamaha Motors
MAIN STAND STOPPER4CW-F7114-00-00
Required: 2
STOPPER, MAIN STAND
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
10
Required: 1
STAY, CARRIER
Price unavailable
11
Required: 1
STAY, CARRIER
Price unavailable
Flange Nut
12
Yamaha Motors
Flange Nut95707-06500-00
Required: 4
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
13
Required: 1
FLAP, FRONT FENDER
Price unavailable
14
Required: 1
HOOK, SEAT
Price unavailable
Bind Screw
15
Yamaha Motors
Bind Screw98907-06012-00
Required: 2
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
16
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
