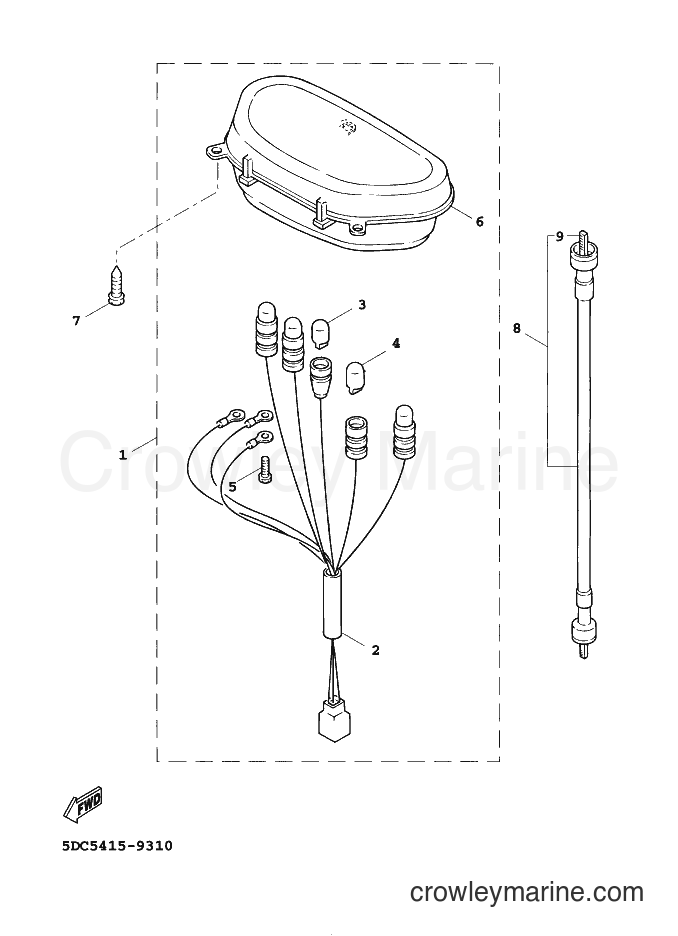

2000 Scooter XC125A - XC125A (5MJ8) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC125A (5MJ8) [010] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 3
. SOCKET CORD ASSY
Price unavailable
Obsolete Yamaha Part
3
Yamaha Motors
Obsolete Yamaha Part3GM-83517-00-00
Required: 2
. BULB (12V 1.7W)
Supersedes: 3KW-H3517-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Bulb (14V-3W)
4
Yamaha Motors
Bulb (14V-3W)4CW-H3517-00-00
Required: 3
. BULB (14V-3W)
Cross Ship
Leaves in 2-5 days
$0.90
$0.76
You save $0.14
More details
Screw with Washer
5
Yamaha Motors
Screw with Washer90159-03102-00
Required: 3
. SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
6
Required: 1
. CASE, METER UPPER
Price unavailable
8
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
9
Required: 1
. WIRE, SPEEDOMETER CABLE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
