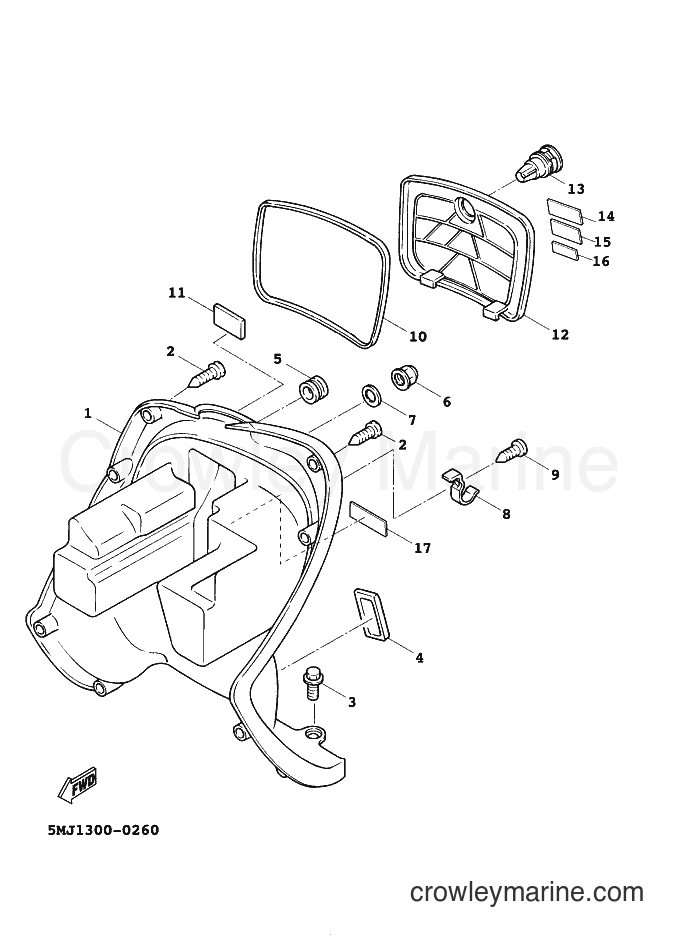

2003 Scooter XC125A - XC125A (5MJ1) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC125A (5MJ1) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
Bolt with Washer
3
Yamaha Motors
Bolt with Washer90119-06821-00
Required: 2
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$1.80
$1.53
You save $0.27
More details
Cap
4
Yamaha Motors
Cap5FM-F8349-00-00
Required: 1
CAP
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
6
Required: 1
NUT, CROWN
Price unavailable
Plate Washer
7
Yamaha Motors
Plate Washer90201-060H9-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
8
Required: 2
HINGE
Price unavailable
Truss Screw
9
Yamaha Motors
Truss Screw97707-40612-00
Required: 2
SCREW, TAPPING
Supersedes: 97707-40512-00
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
10
Required: 1
DAMPER
Price unavailable
11
Required: 1
PROTECTOR 1
Price unavailable
12
Required: 1
LID
Price unavailable
13
Required: 1
LOCK ASSY
Price unavailable
14
Required: 1
LABEL, WARNING
Price unavailable
14
Required: 1
LABEL, WARNING
Price unavailable
14
Required: 1
LABEL, WARNING
Price unavailable
15
Required: 1
LABEL, WARNING
Price unavailable
15
Required: 1
LABEL, WARNING
Price unavailable
15
Required: 1
LABEL, WARNING
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
16
Required: 1
LABEL
Price unavailable
17
Required: 1
PLATE, SIDE 3
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
