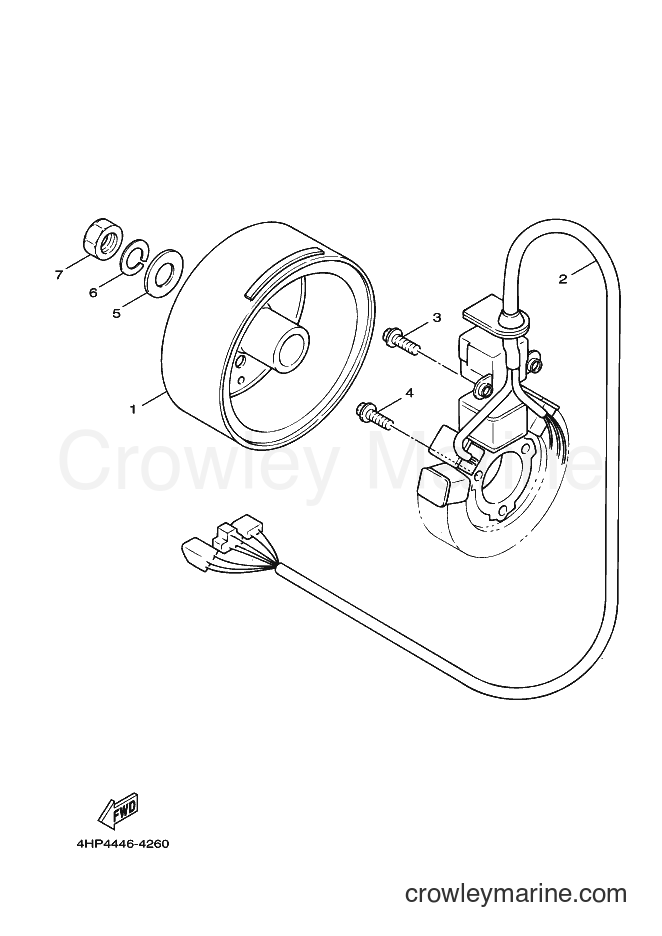

2003 Scooter XC125A - XC125A (5MJ1) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC125A (5MJ1) [010] - GENERATOR
Change View:
1
Required: 1
ROTOR ASSY
Price unavailable
2
Required: 1
STATOR ASSY
Price unavailable
Screw with Washer
3
Yamaha Motors
Screw with Washer97607-06316-00
Required: 2
SCREW,WITH WASHER
Cross Ship
Leaves in 2-5 days
$0.40
$0.34
You save $0.06
More details
4
Required: 3
SCREW,WITH WASHER
Price unavailable
Plate Washer
5
Yamaha Motors
Plate Washer92907-12600-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
WASHER
6
Yamaha Motors
WASHER92907-12100-00
Required: 1
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Hexagon Nut
7
Yamaha Motors
Hexagon Nut90170-12181-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
