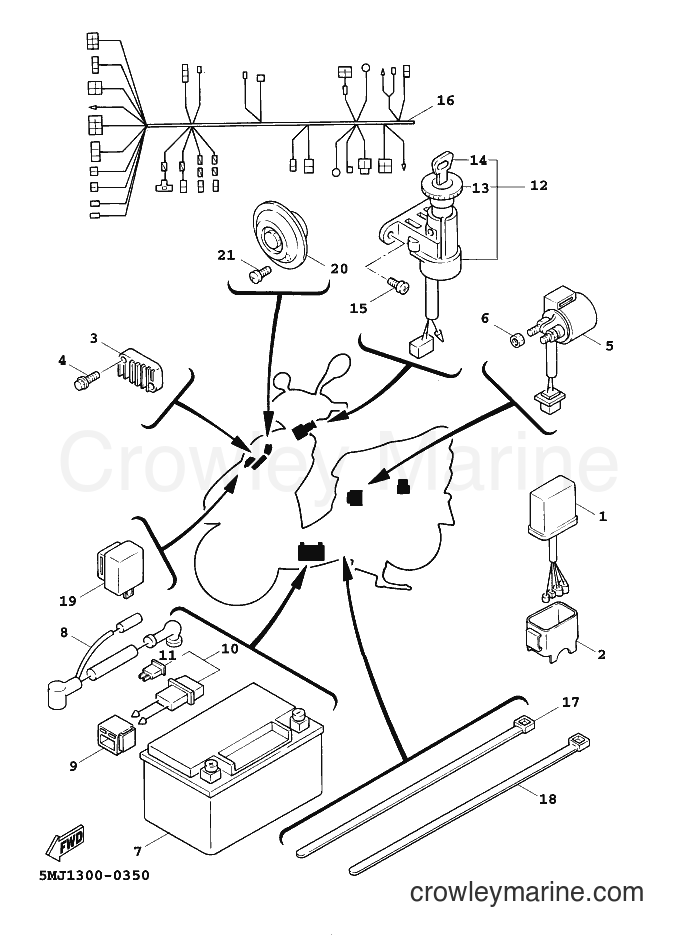

2001 Scooter XC125A - XC125A (5MJ1) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC125A (5MJ1) [010] - ELECTRICAL 1
Change View:
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
Band
2
Yamaha Motors
Band4KP-H5546-00-00
Required: 1
BAND
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
3
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
Pan Head Screw
4
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06025-00
Cross Ship
Leaves in 2-5 days
$4.05
$3.60
You save $0.45
More details
5
Required: 1
STARTER RELAY ASSY
Price unavailable
Nut
6
Yamaha Motors
Nut95317-06700-00
Required: 2
NUT
Supersedes: 95307-06700-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
7
Required: 1
BATTERY ASSY
Price unavailable
8
Required: 1
WIRE, PLUS LEAD
Price unavailable
9
Required: 1
BAND
Price unavailable
Fuse Holder Assembly
10
Yamaha Motors
Fuse Holder Assembly4RR-82150-00-00
Required: 1
FUSE HOLDER ASSY
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
FUSE (15 AMP)
11
Yamaha Motors
FUSE (15 AMP)36Y-82151-00-00
Required: 1
. FUSE (15A-BL)
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
12
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
Switch Cap
13
Yamaha Motors
Switch Cap4VP-H2552-10-00
Required: 1
. CAP, SWITCH
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
14
Required: 1
. KEY, MAIN SWITCH
Price unavailable
14
Required: 1
. KEY, MAIN SWITCH
Price unavailable
15
Required: 2
BOLT
Price unavailable
16
Required: 1
WIRE HARNESS ASSY
Price unavailable
Clamp
17
Yamaha Motors
Clamp90464-12812-00
Required: 5
CLAMP
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
18
Required: 1
CLAMP
Price unavailable
19
Required: 1
FLASHER RELAY ASSY
Price unavailable
20
Required: 1
HORN
Price unavailable
Pan Head Screw
21
Yamaha Motors
Pan Head Screw98507-06010-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
