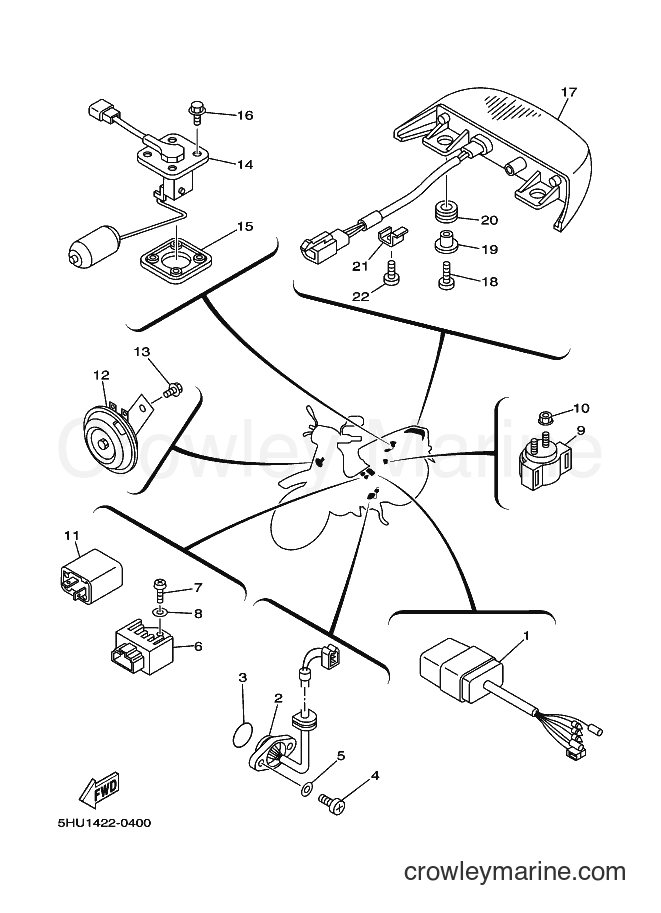

2000 Scooter T105SE - T105SE (5HU1) [020] ELECTRICAL 2 diagram
![Yamaha Motors T105SE (5HU1) [020] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/RCQKQQk7.png)
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
-50%
3
Yamaha Motors
O-Ring93210-20573-00
Required: 1
O-RING
Supersedes: 93210-228G1-00
In stock
Only 5 remaining
$4.75
You save $4.75
4
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 2
SCREW, PAN HEAD
In stock
Only 4 remaining
$1.53
You save $0.27
5
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
$1.98
You save $-0.98
6
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
7
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 1
SCREW, PAN HEAD
$2.96
You save $0.52
8
Yamaha Motors
Plate Washer92907-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
9
Required: 1
STARTER RELAY ASSY
Price unavailable
$0.85
You save $0.15
11
Required: 1
FLASHER RELAY ASSY
Price unavailable
12
Required: 1
HORN
Price unavailable
-50%
13
Yamaha Motors
Flange Bolt95817-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06010-00
In stock
Only 4 remaining
$2.75
You save $2.75
14
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
15
Yamaha Motors
Sender Unit Gasket5G3-85753-00-00
Required: 1
GASKET, SENDER UNIT
$16.14
You save $2.85
16
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
$8.07
You save $1.42
17
Required: 1
L.E.D ASS'Y
Price unavailable
$8.92
You save $1.57
$4.21
You save $0.74
$8.07
You save $1.42
21
Required: 2
HOLDER 1
Price unavailable
22
Yamaha Motors
Pan Head Screw98511-04006-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-04006-00
$3.82
You save $0.68
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
