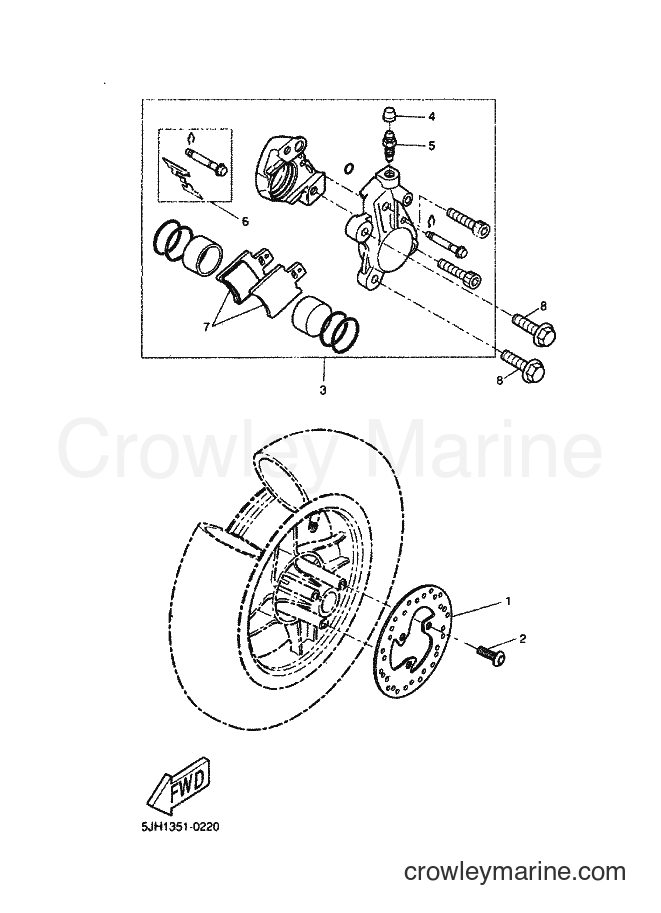

2000 Scooter EW50 - EW50 (5LH1) [010] FRONT BRAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EW50 (5LH1) [010] - FRONT BRAKE
Change View:
1
Required: 1
DISC, BRAKE
Price unavailable
BOLT
2
Yamaha Motors
BOLT90111-10X00-00
Required: 3
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$12.99
$11.04
You save $1.95
More details
3
Required: 1
CALIPER ASSY, REAR 1
Price unavailable
Cap
4
Yamaha Motors
Cap4CU-F5825-00-00
Required: 1
. CAP
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
SCREW, BREED
5
Yamaha Motors
SCREW, BREED4CU-F5824-00-00
Required: 1
. SCREW, BLEED
Cross Ship
Leaves in 2-5 days
$19.99
$16.99
You save $3.00
More details
6
Required: 1
. SUPPORT, PAD
Price unavailable
7
Required: 1
. PAD, CALIPER 2
Price unavailable
Washer Based Bolt
8
Yamaha Motors
Washer Based Bolt90105-08X00-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.45
$2.08
You save $0.37
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
