2000 Scooter DT50LC - DT50LC (3UN7) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

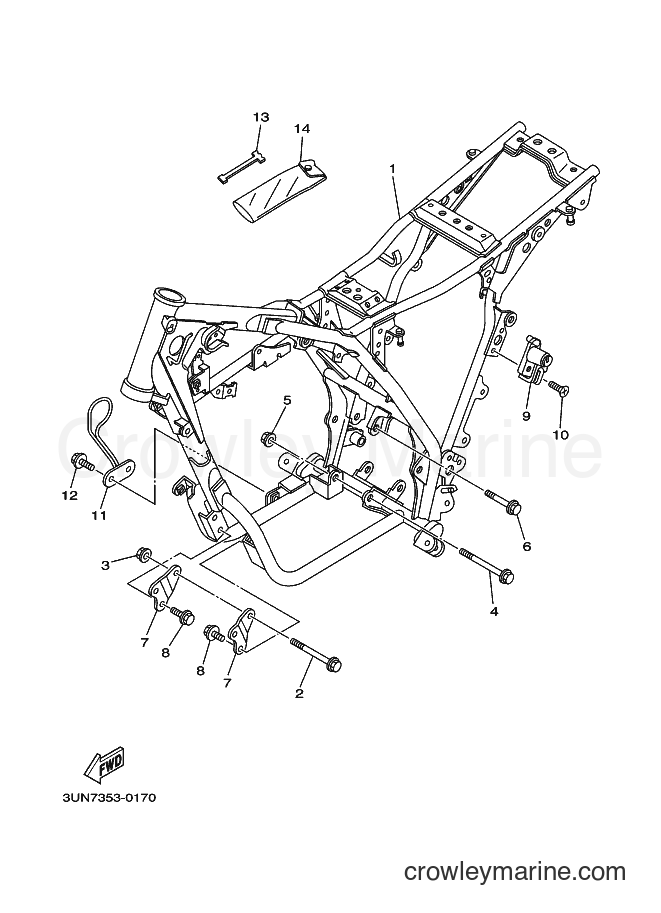

Yamaha Motors DT50LC (3UN7) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-10392-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Washer Based Bolt
4
Yamaha Motors
Washer Based Bolt90105-10392-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Washer Based Bolt
6
Yamaha Motors
Washer Based Bolt90105-10402-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
7
Required: 2
BRACKET, FRONT LOWER 1
Price unavailable
HELMET HANGER ASSEMBLY
9
Yamaha Motors
HELMET HANGER ASSEMBLY5H0-21308-01-00
Required: 1
HELMET HANGER ASSY
Cross Ship
Leaves in 2-5 days
$91.99
$78.19
You save $13.80
More details
Countersunk Screw
10
Yamaha Motors
Countersunk Screw90151-06025-00
Required: 1
SCREW, COUNTERSUNK
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
11
Required: 1
GUARD, ENGINE 1
Price unavailable
Small Bolt Flange
12
Yamaha Motors
Small Bolt Flange95027-08012-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
TOOL KIT
13
Yamaha Motors
TOOL KIT2U2-W2810-00-00
Required: 1
TOOL KIT
Supersedes: 2U2-28100-00-00
Cross Ship
Leaves in 2-5 days
$79.99
$67.99
You save $12.00
More details
Level Gauge
14
Yamaha Motors
Level Gauge3M7-15361-00-00
Required: 1
GAUGE, LEVEL
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
