2000 Scooter CY50 - CY50 (3SAB) [010] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

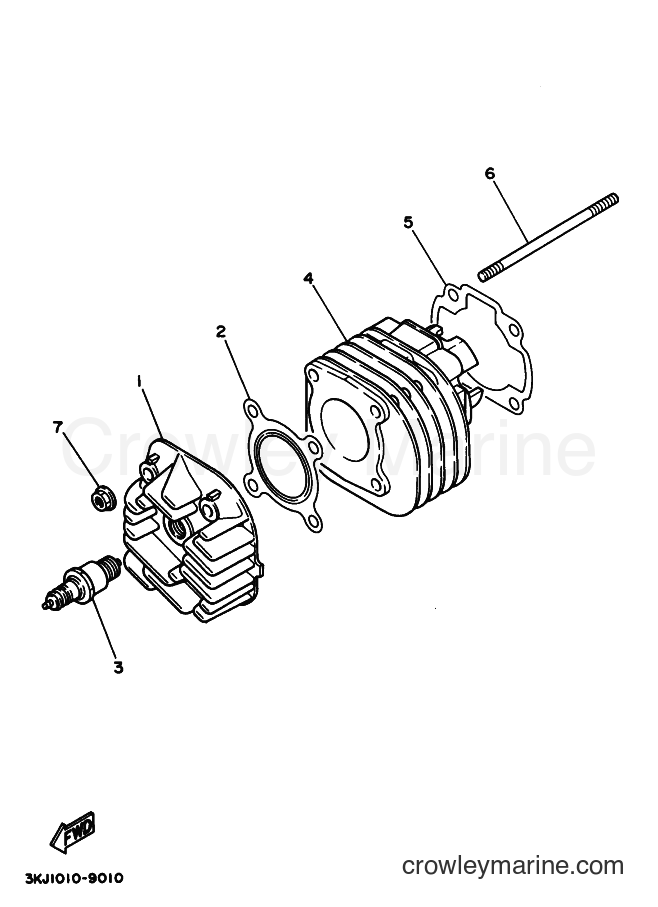

Yamaha Motors CY50 (3SAB) [010] - CYLINDER
Change View:
CYLINDER HEAD
1
Yamaha Motors
CYLINDER HEAD3KJ-11111-10-00
Required: 1
HEAD, CYLINDER 1
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
RESIS PLUG BR-7HS
3
Yamaha Motors
RESIS PLUG BR-7HS94701-00110-00
Required: 1
PLUG, SPARK (NGK BR7HS)
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Cylinder
4
Yamaha Motors
Cylinder3KJ-11311-10-00
Required: 1
CYLINDER 1
Cross Ship
Leaves in 2-5 days
$191.99
$163.19
You save $28.80
More details
Stud Bolt
6
Yamaha Motors
Stud Bolt90116-07353-00
Required: 4
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
SPECIAL SHAPE NUT
7
Yamaha Motors
SPECIAL SHAPE NUT90179-07381-00
Required: 4
NUT
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
