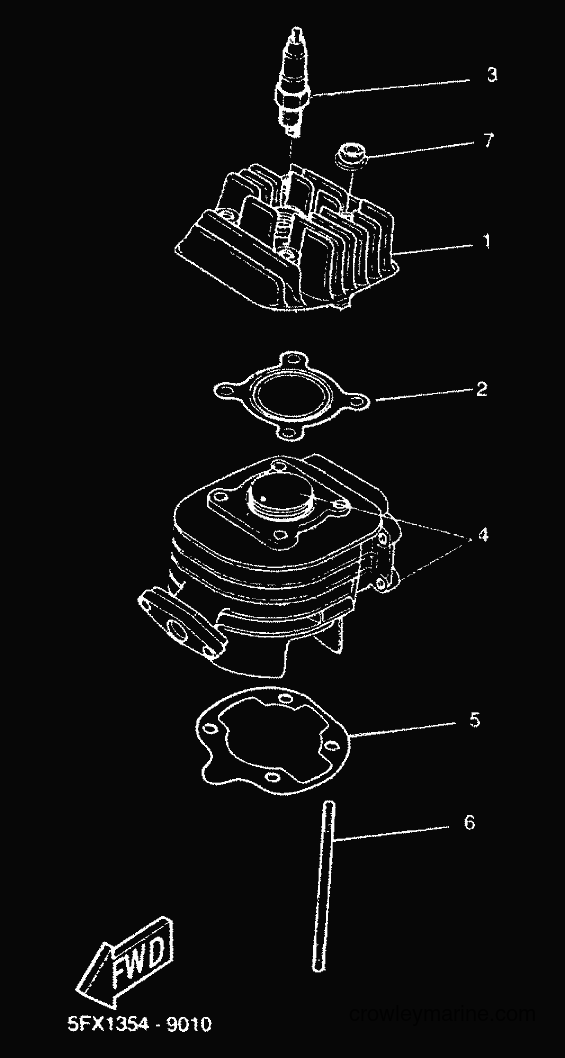

2000 Scooter CW50RS - CW50RS (5FXF) [010] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50RS (5FXF) [010] - CYLINDER
Change View:
1
Required: 1
HEAD, CYLINDER 1
Price unavailable
Cylinder Head Gasket
2
Yamaha Motors
Cylinder Head Gasket3VL-E1181-00-00
Required: 1
GASKET, CYLINDER HEAD 1
Cross Ship
Leaves in 2-5 days
$21.99
$18.69
You save $3.30
More details
3
Required: 1
PLUG, SPARK
Price unavailable
4
Required: 2
. CIRCLIP
Price unavailable
Piston Ring Set (Standard)
4
Yamaha Motors
Piston Ring Set (Standard)3YJ-11610-00-00
Required: 1
. PISTON RING SET
Cross Ship
Leaves in 2-5 days
$32.99
$28.04
You save $4.95
More details
Piston Pin
4
Yamaha Motors
Piston Pin3VL-E1633-00-00
Required: 1
. PIN, PISTON
Cross Ship
Leaves in 2-5 days
$15.99
$13.59
You save $2.40
More details
4
Required: 1
CYLINDER 1
Price unavailable
4
Required: 1
. PISTON (STD)
Price unavailable
Cylinder Gasket
5
Yamaha Motors
Cylinder Gasket3VL-E1351-00-00
Required: 1
GASKET, CYLINDER
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Stud Bolt
6
Yamaha Motors
Stud Bolt90116-06418-00
Required: 4
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Flange Nut
7
Yamaha Motors
Flange Nut95707-06500-00
Required: 4
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
