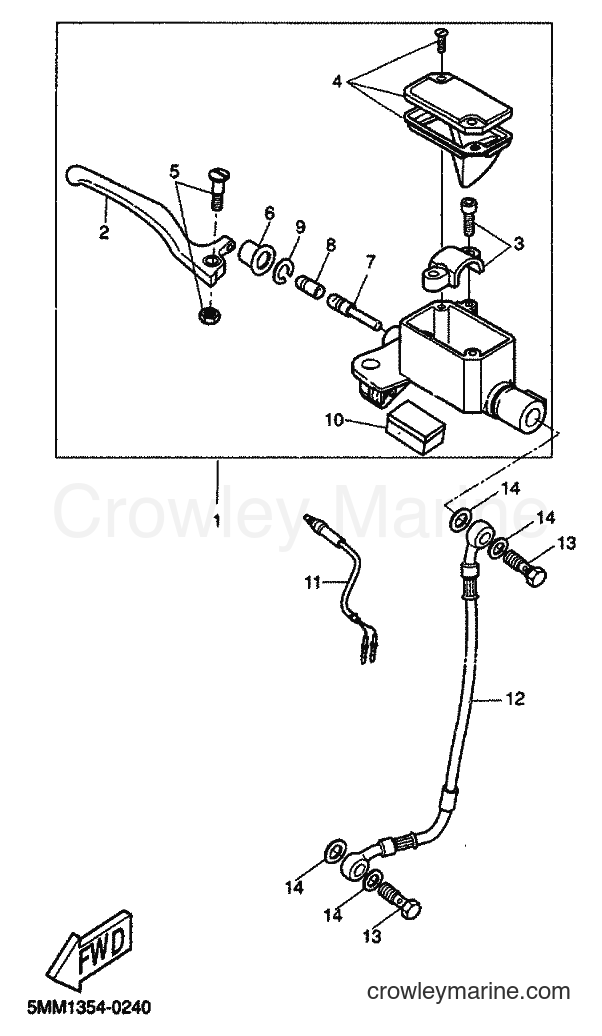

2000 Scooter CW50 - CW50 (5MS1) [010] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50 (5MS1) [010] - FRONT MASTER CYLINDER
Change View:
MASTER CYLINDER ASSEMBLY
1
Yamaha Motors
MASTER CYLINDER ASSEMBLY4VV-F583T-01-00
Required: 1
MASTER CYLINDER ASSY
Cross Ship
Leaves in 2-5 days
$208.99
$177.64
You save $31.35
More details
2
Required: 1
. LEVER 2
Price unavailable
3
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
4
Required: 1
. CAP, RESERVOIR
Price unavailable
5
Required: 1
. BOLT, LEVER
Price unavailable
6
Required: 1
. BOOT
Price unavailable
7
Required: 1
. PISTON, MASTER CYLINDER
Price unavailable
8
Required: 1
. PIN, PAD
Price unavailable
9
Required: 1
. CLIP
Price unavailable
10
Required: 1
. MASTER CYLINDER SUB ASSY
Price unavailable
STOP SWITCH ASSEMBLY
11
Yamaha Motors
STOP SWITCH ASSEMBLY5XL-H3980-00-00
Required: 1
FRONT STOP SWITCH ASSY
Supersedes: 5AD-H3980-01-00
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
BRAKE HOSE 1
12
Yamaha Motors
BRAKE HOSE 14VV-F5872-10-00
Required: 1
HOSE, BRAKE 1
Supersedes: 4VV-F5872-01-00
Cross Ship
Leaves in 2-5 days
$140.99
$119.84
You save $21.15
More details
Union Bolt (3GM)
13
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 2
BOLT, UNION
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Plate Washer
14
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
