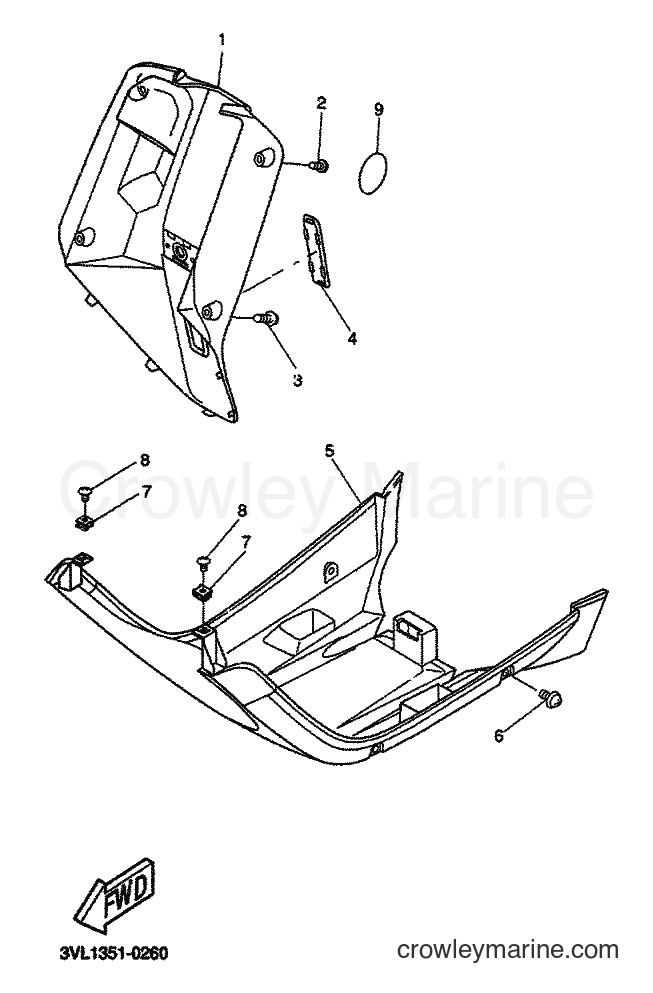

2000 Scooter CW50 - CW50 (5MN1) [040] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50 (5MN1) [040] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 2
SCREW, TAPPING
Price unavailable
Screw (M8 X 40)
3
Yamaha Motors
Screw (M8 X 40)43D-F11C5-00-00
Required: 2
SCREW, BIND
Supersedes: 98980-06012-00
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
4
Required: 1
CAP
Price unavailable
LOWER COVER
5
Yamaha Motors
LOWER COVER3VL-F8385-10-00
Required: 1
COVER, UNDER
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
6
Required: 4
BOLT,HEX. SOCKET BUTTON
Price unavailable
Spring Nut
7
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Tapping Screw
8
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
9
Required: 1
EMBLEM
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
