2000 Scooter CW50 - CW50 (5MN1) [040] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

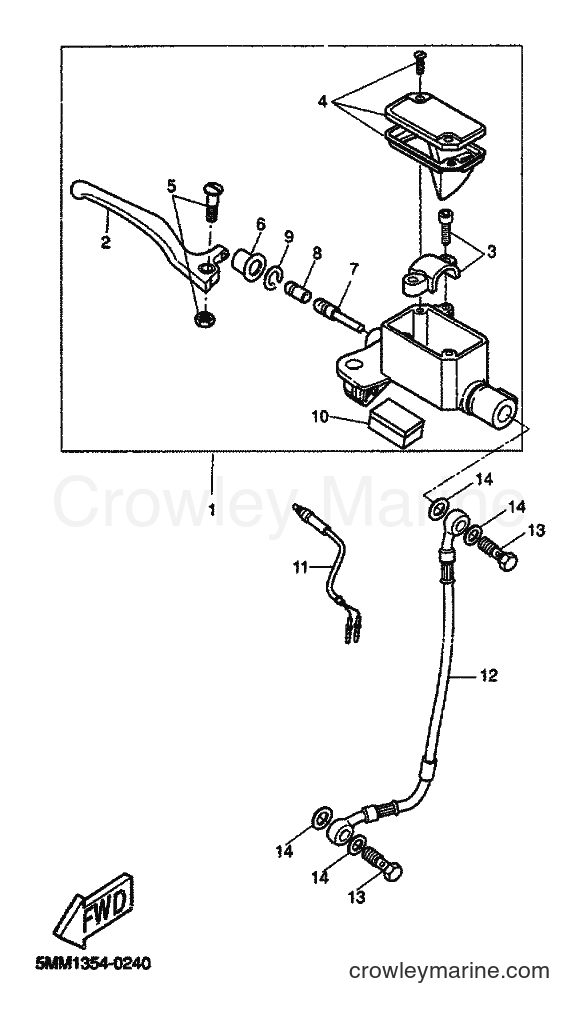

Yamaha Motors CW50 (5MN1) [040] - FRONT MASTER CYLINDER
Change View:
1
Required: 1
MASTER CYLINDER ASSY
Price unavailable
2
Required: 1
LEVER 2
Price unavailable
3
Required: 1
BRACKET, MASTER CYLINDER
Price unavailable
4
Required: 1
CAP, RESERVOIR
Price unavailable
5
Required: 1
BOLT, LEVER
Price unavailable
6
Required: 1
BOOT
Price unavailable
7
Required: 1
PISTON, MASTER CYLINDER
Price unavailable
8
Required: 1
PIN, PAD
Price unavailable
9
Required: 1
CLIP
Price unavailable
10
Required: 1
MASTER CYLINDER SUB ASSY
Price unavailable
STOP SWITCH ASSEMBLY
11
Yamaha Motors
STOP SWITCH ASSEMBLY5XL-H3980-00-00
Required: 1
FRONT STOP SWITCH ASSY
Supersedes: 5AD-H3980-01-00
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
BRAKE HOSE 1
12
Yamaha Motors
BRAKE HOSE 14VV-F5872-10-00
Required: 1
HOSE, BRAKE 1
Supersedes: 4VV-F5872-01-00
Cross Ship
Leaves in 2-5 days
$140.99
$119.84
You save $21.15
More details
Union Bolt
13
Yamaha Motors
Union Bolt90401-10X01-00
Required: 2
BOLT, UNION
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Plain Washer
14
Yamaha Motors
Plain Washer90201-10X03-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
