1999 Scooter YW100 - YW100 (4VPG) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

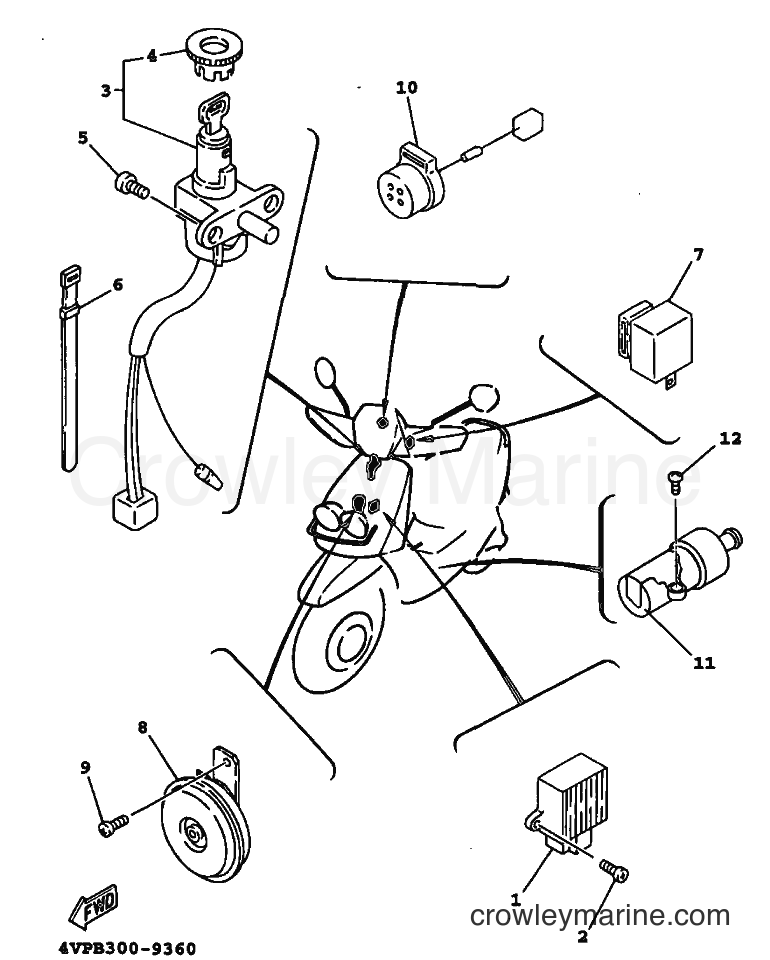

Yamaha Motors YW100 (4VPG) [010] - ELECTRICAL 2
Change View:
Rectifier & Regulator Assembly
1
Yamaha Motors
Rectifier & Regulator Assembly3GF-H1960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$183.99
$156.39
You save $27.60
More details
3
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
Switch Cap
4
Yamaha Motors
Switch Cap4VP-H2552-10-00
Required: 1
. CAP, SWITCH
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
Screw
5
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.49
You save $0.62
More details
5
Required: 2
BOLT
Price unavailable
Switch Cord Band
6
Yamaha Motors
Switch Cord Band23Y-H3936-00-00
Required: 2
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$0.30
$0.26
You save $0.05
More details
7
Required: 1
FLASHER RELAY ASSY
Price unavailable
Horn
8
Yamaha Motors
Horn4VP-H3371-10-00
Required: 1
HORN
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
Pan Head Screw
9
Yamaha Motors
Pan Head Screw98507-06010-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
10
Required: 1
AUDIO PILOT ASSY
Price unavailable
Side Stand Switch
11
Yamaha Motors
Side Stand Switch4DH-82566-00-00
Required: 1
SWITCH, SIDE STAND
Cross Ship
Leaves in 2-5 days
$146.99
$124.94
You save $22.05
More details
Pan Head Screw
12
Yamaha Motors
Pan Head Screw98507-05014-00
Required: 2
SCREW, PAN HEAD
Supersedes: 90157-05079-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
