1999 Scooter YP250A - YP250A (5DF3) [010] STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

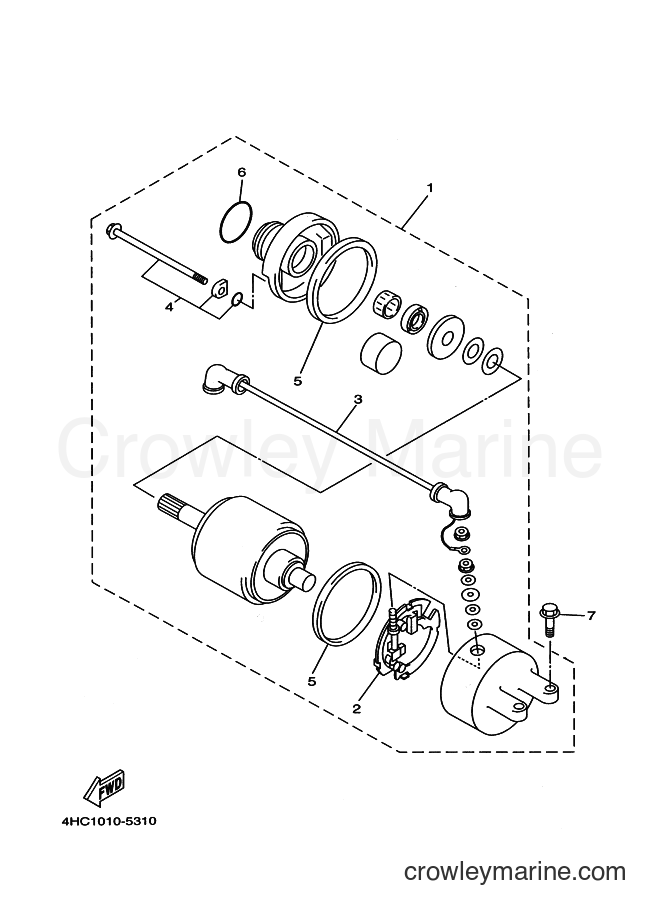

Yamaha Motors YP250A (5DF3) [010] - STARTER

Change View:

Required: 1

STARTING MOTOR ASSY

Price unavailable

Yamaha Motors

BRUSH HOLDER ASSEMBLY3KS-81840-00-00

Required: 1

. BRUSH HOLDER ASSY

~~$172.99~~

$147.04

You save $25.95

More details

Required: 1

. CORD, STARTER MOTOR

Price unavailable

Yamaha Motors

BOLT3WP-81826-00-00

Required: 2

. BOLT

~~$17.49~~

$14.87

You save $2.62

More details

Yamaha Motors

Tank Cap Gasket35C-81844-00-00

Required: 2

. GASKET

Supersedes: 11H-81844-00-00

~~$53.99~~

$45.89

You save $8.10

. O-RING

Supersedes: 1FK-81847-00-00

In stock

5+ in stock

~~$8.49~~

$7.22

You save $1.27

More details

Yamaha Motors

Flange Bolt95817-06025-00

Required: 2

BOLT, FLANGE

~~$1.75~~

$1.49

You save $0.26

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
