1999 Scooter YP125E - YP125E (5DS8) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

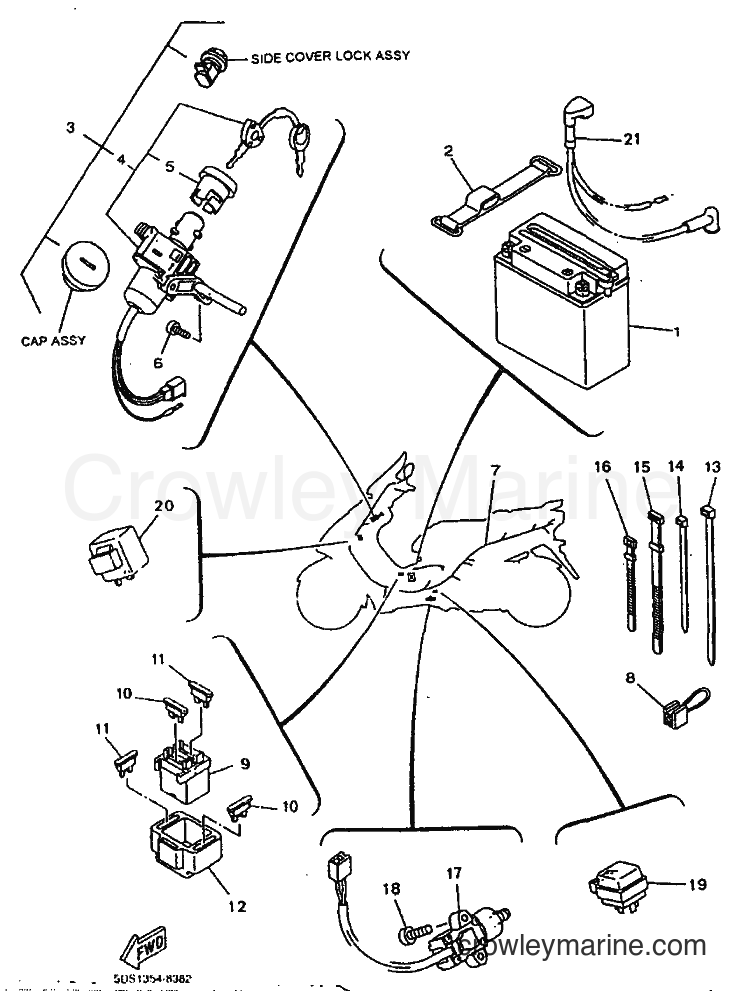

Yamaha Motors YP125E (5DS8) [010] - ELECTRICAL 2
Change View:
1
Required: 1
BATTERY ASSY
Price unavailable
2
Required: 1
BAND, BATTERY
Price unavailable
3
Required: 1
KEY SET
Price unavailable
4
Required: 1
. MAIN SWITCH STEERING LOCK
Price unavailable
5
Required: 1
. CAP, SWITCH
Price unavailable
6
Required: 2
BOLT
Price unavailable
7
Required: 1
WIRE HARNESS ASSY
Price unavailable
8
Required: 1
WIRE, LEAD 1
Price unavailable
9
Required: 2
HOLDER, FUSE
Price unavailable
10
Required: 2
FUSE
Price unavailable
11
Required: 2
FUSE
Price unavailable
12
Required: 1
BAND
Price unavailable
13
Required: 4
CLAMP
Price unavailable
14
Required: 4
CLAMP
Price unavailable
15
Required: 3
BAND, SWITCH CORD
Price unavailable
16
Required: 1
BAND, SWITCH CORD
Price unavailable
Side Stand Switch
17
Yamaha Motors
Side Stand Switch3LD-82566-50-00
Required: 1
SWITCH, SIDE STAND
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
18
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
19
Required: 1
RELAY ASSY
Price unavailable
20
Required: 1
FLASHER RELAY ASSY
Price unavailable
21
Required: 1
WIRE, PLUS LEAD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
