All diagrams for this model

1999 Scooter YN50 - YN50 (5ADF) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

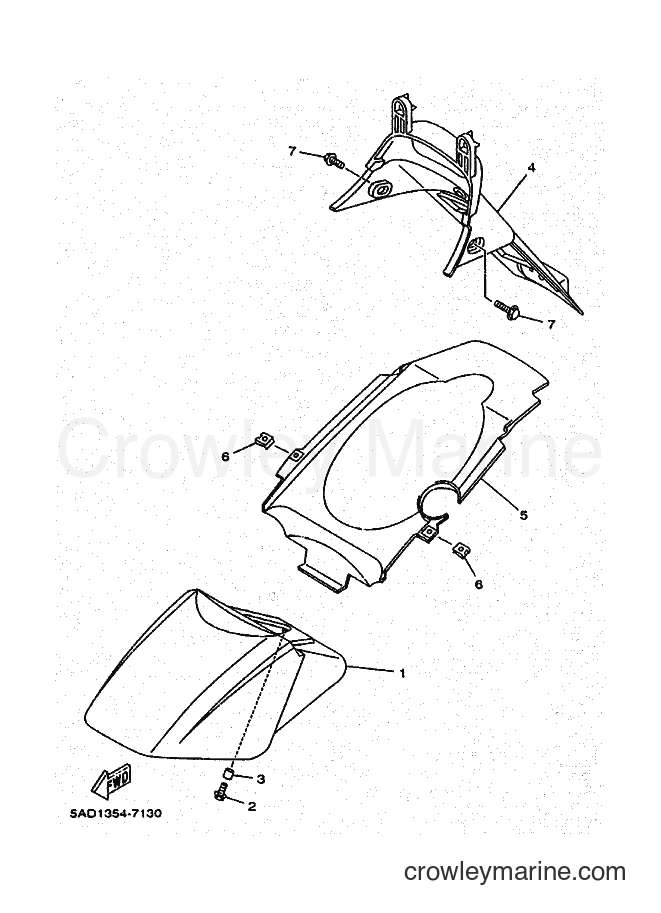

Yamaha Motors YN50 (5ADF) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
Flange Bolt
2
Yamaha Motors
Flange Bolt95811-06016-00
Required: 3
BOLT HEX.
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
90387-06113-00
3
Yamaha Motors
90387-06113-0090387-060A7-00
Required: 3
COLLAR
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
4
Required: 1
FENDER, REAR
Price unavailable
5
Required: 1
GUARD, MUD
Price unavailable
Bolt with Washer
7
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
