All diagrams for this model

1999 Scooter YN50 - YN50 (5ADF) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

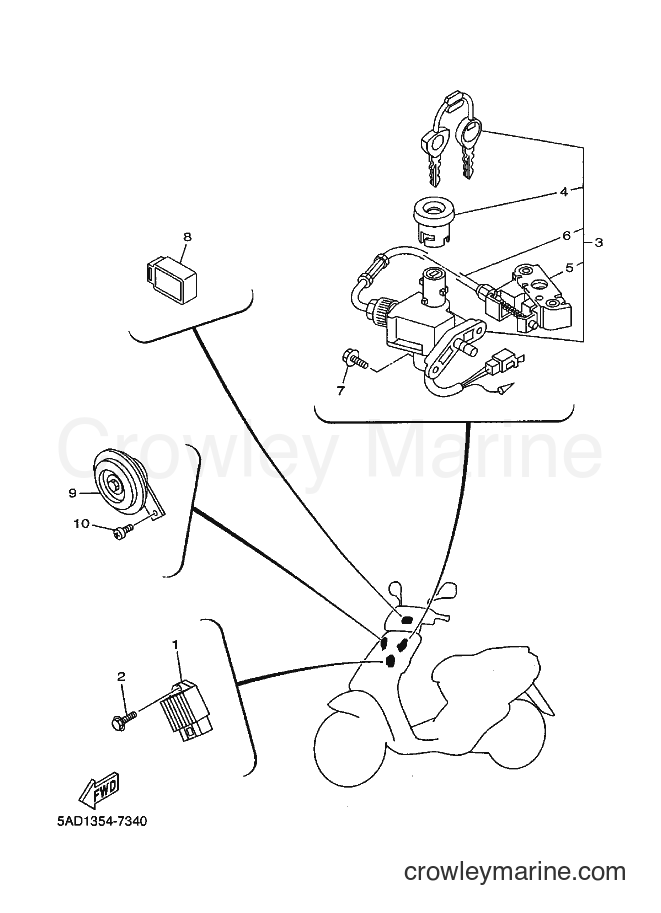

Yamaha Motors YN50 (5ADF) [010] - ELECTRICAL 1
Change View:
1
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
BOLT
2
Yamaha Motors
BOLT95023-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95021-06012-00
Cross Ship
Leaves in 2-5 days
$2.05
$1.74
You save $0.31
More details
3
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
4
Required: 1
CAP, SWITCH
Price unavailable
5
Required: 1
SEAT LOCK ASSY
Price unavailable
6
Required: 1
WIRE, SEAT HOOK
Price unavailable
Bolt (4MY)
7
Yamaha Motors
Bolt (4MY)91317-06010-00
Required: 2
BOLT
Supersedes: 91316-06010-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
8
Required: 1
FLASHER RELAY ASSY
Price unavailable
9
Required: 1
HORN
Price unavailable
Pan Head Screw
10
Yamaha Motors
Pan Head Screw98580-06010-00
Required: 1
BOLT
Supersedes: 98501-06010-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
