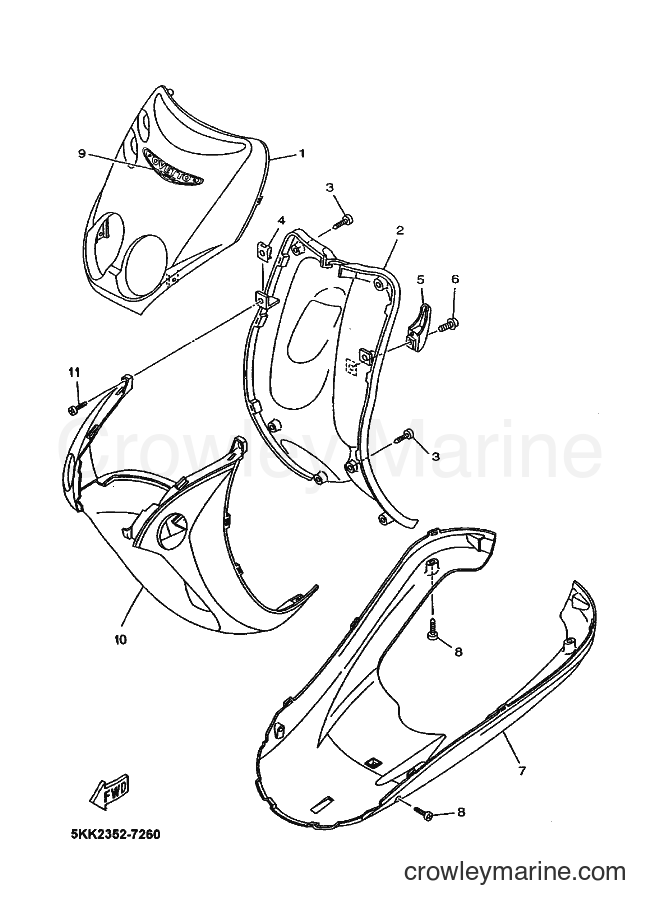

1999 Scooter YN100'99 - YN100'99 (5KK2) [010] LEGSHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN100'99 (5KK2) [010] - LEGSHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 1
LEG SHIELD 2
Price unavailable
97707-50016-00
3
Yamaha Motors
97707-50016-0097706-50016-00
Required: 6
SCREW
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details
5
Required: 1
HOOK
Price unavailable
6
Required: 1
SCREW, WITH WASHER
Price unavailable
7
Required: 1
COVER, LOWER
Price unavailable
97707-50016-00
8
Yamaha Motors
97707-50016-0097706-50016-00
Required: 4
SCREW
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details
9
Required: 1
EMBLEM
Price unavailable
10
Required: 1
MOLD, FENDER
Price unavailable
10
Required: 1
MOLD, FENDER
Price unavailable
97707-50016-00
11
Yamaha Motors
97707-50016-0097706-50016-00
Required: 4
SCREW
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
