All diagrams for this model

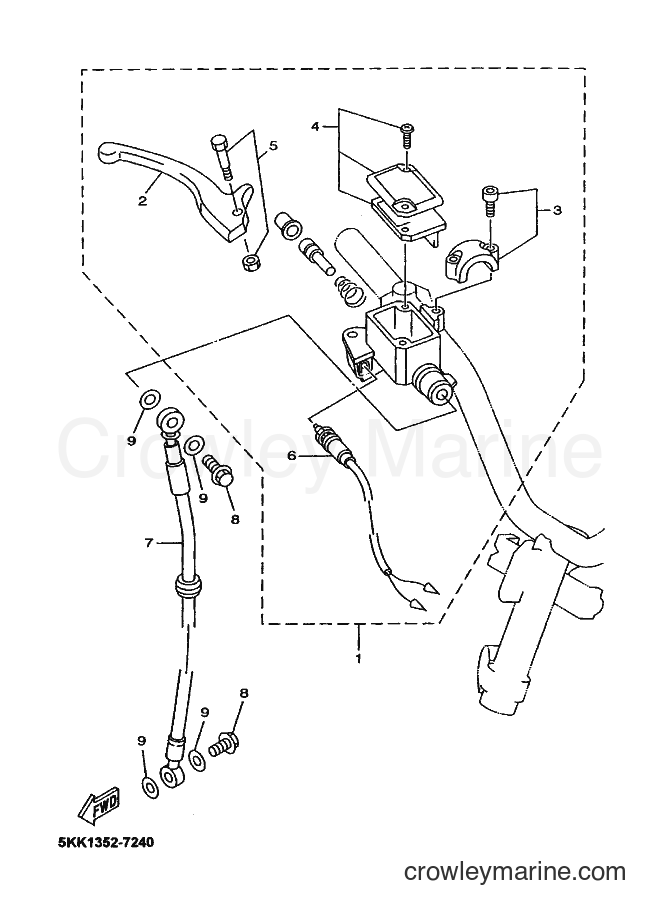

1999 Scooter YN100'99 - YN100'99 (5KK2) [010] FRONTMASTERCYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN100'99 (5KK2) [010] - FRONTMASTERCYLINDER
Change View:
1
Required: 1
MASTER CYLINDER ASSY
Price unavailable
2
Required: 1
.LEVER 2
Price unavailable
3
Required: 1
.BRACKET, MASTER CYLINDER
Price unavailable
4
Required: 1
.CAP, RESERVOIR
Price unavailable
5
Required: 1
.BOLT, LEVER
Price unavailable
STOP SWITCH ASSEMBLY
6
Yamaha Motors
STOP SWITCH ASSEMBLY5XL-H3980-00-00
Required: 1
.FR. STOP SWITCH ASSY.
Supersedes: 5AD-H3980-01-00
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
7
Required: 1
HOSE, BRAKE 1
Price unavailable
8
Required: 2
BOLT, OIL 1
Price unavailable
Plate Washer
9
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
