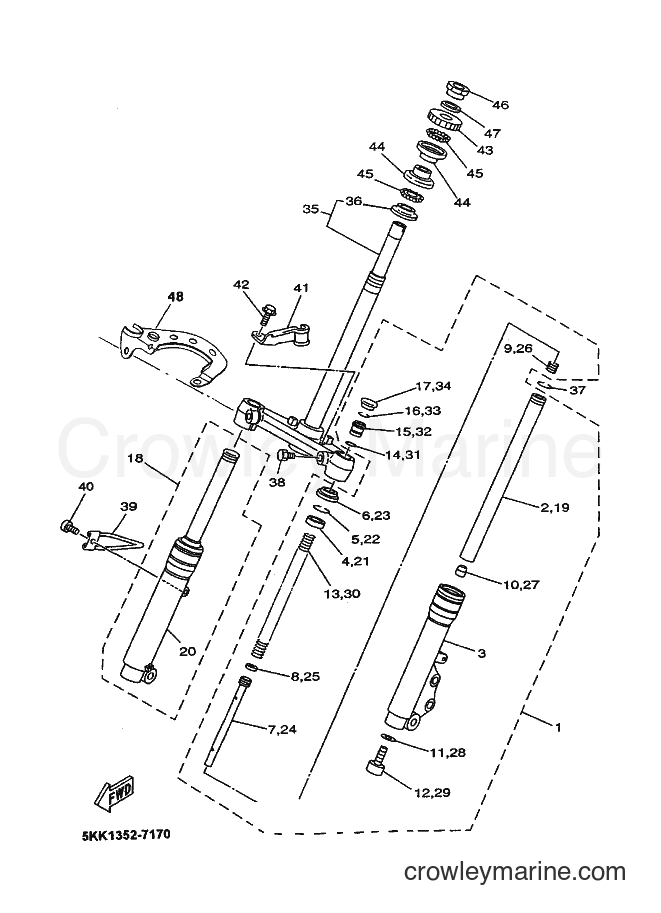

1999 Scooter YN100'99 - YN100'99 (5KK2) [010] FRONTFORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN100'99 (5KK2) [010] - FRONTFORK
Change View:
1
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
2
Required: 1
.INNER TUBE COMP.1
Price unavailable
3
Required: 1
.TUBE, OUTER 1
Price unavailable
4
Required: 1
.OIL SEAL
Price unavailable
5
Required: 1
.CLIP, OIL SEAL
Price unavailable
6
Required: 1
.SEAL, DUST
Price unavailable
7
Required: 1
.PISTON, FRONT FORK
Price unavailable
8
Required: 1
.RING, PISTON
Price unavailable
9
Required: 1
.SPRING, REBOUND
Price unavailable
10
Required: 1
.SPINDLE, TAPER
Price unavailable
11
Required: 1
.WASHER, PLATE
Price unavailable
12
Required: 1
.BOLT
Price unavailable
13
Required: 1
.SPRING, FRONT FORK
Price unavailable
14
Required: 1
.O-RING
Price unavailable
15
Required: 1
.BOLT, CAP
Price unavailable
16
Required: 1
.CIRCLIP
Price unavailable
17
Required: 1
.PLUG, INNER TUBE
Price unavailable
18
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
19
Required: 1
.INNER TUBE COMP.1
Price unavailable
20
Required: 1
.TUBE, OUTER 2
Price unavailable
21
Required: 1
.OIL SEAL
Price unavailable
22
Required: 1
.CLIP, OIL SEAL
Price unavailable
23
Required: 1
.SEAL, DUST
Price unavailable
24
Required: 1
.PISTON, FRONT FORK
Price unavailable
25
Required: 1
.RING, PISTON
Price unavailable
26
Required: 1
.SPRING, REBOUND
Price unavailable
27
Required: 1
.SPINDLE, TAPER
Price unavailable
28
Required: 1
.WASHER, PLATE
Price unavailable
29
Required: 1
.BOLT
Price unavailable
30
Required: 1
.SPRING, FRONT FORK
Price unavailable
31
Required: 1
.O-RING
Price unavailable
32
Required: 1
.BOLT, CAP
Price unavailable
33
Required: 1
.CIRCLIP
Price unavailable
34
Required: 1
.PLUG, INNER TUBE
Price unavailable
35
Required: 1
UNDER BRACKET COMP.
Price unavailable
36
Required: 1
RACE, BALL 4
Price unavailable
37
Required: 2
RING, SNAP
Price unavailable
95811-10030-00
38
Yamaha Motors
95811-10030-0095821-10030-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
39
Required: 1
HOLDER, CABLE
Price unavailable
Pan Head Screw
40
Yamaha Motors
Pan Head Screw98580-06010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98501-06010-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
41
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
95816-06012-00
42
Yamaha Motors
95816-06012-0095826-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95806-06012-00
Cross Ship
Leaves in 2-5 days
$1.35
$1.15
You save $0.20
More details
43
Required: 1
RACE, BALL 1
Price unavailable
44
Required: 2
RACE, BALL 2
Price unavailable
45
Required: 2
PLANE BEARING, STEERING
Price unavailable
46
Required: 1
NUT, FITTING 1
Price unavailable
47
Required: 1
WASHER
Price unavailable
48
Required: 1
PLATE 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
