1999 Scooter YN100'99 - YN100'99 (5KK2) [010] ELECTRICAL2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

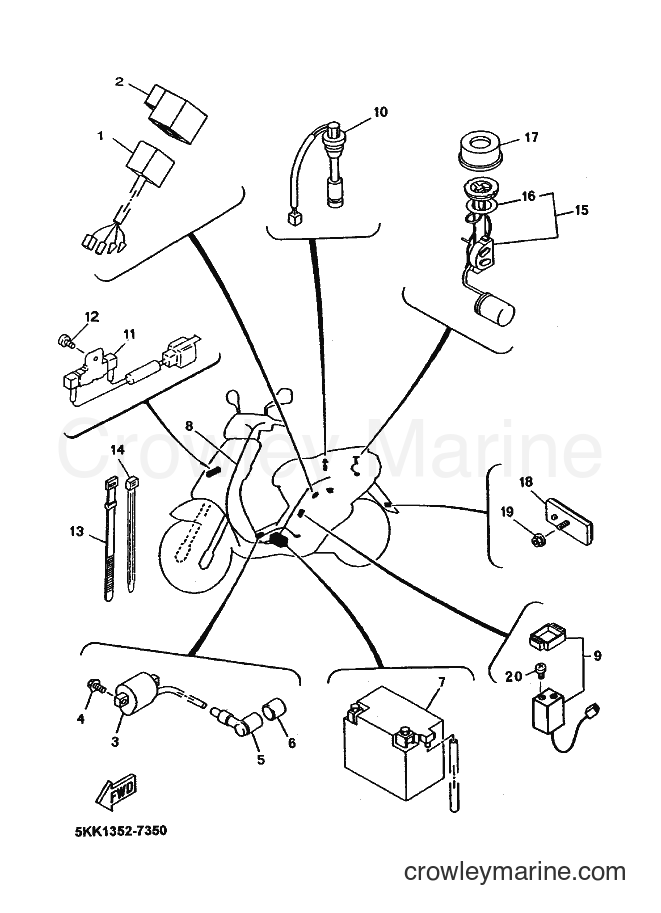

Yamaha Motors YN100'99 (5KK2) [010] - ELECTRICAL2
Change View:
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
C.D.I. BAND
Price unavailable
IGNITION COIL ASSY
3
Yamaha Motors
IGNITION COIL ASSY3KJ-82310-14-00
Required: 1
IGNITION COIL ASSY
Supersedes: 3KJ-82310-10-00
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
Hexagon bolt
4
Yamaha Motors
Hexagon bolt97313-06016-00
Required: 2
BOLT
Supersedes: 97301-06016-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
5
Required: 1
PLUG CAP ASSY
Price unavailable
6
Required: 1
SEAL, PLUG CAP
Price unavailable
BTG-GT4LB-S0-00
7
Yamaha Motors
BTG-GT4LB-S0-003UC-82100-01-00
Required: 1
BATTERY ASSY
Cross Ship
Leaves in 2-5 days
$43.99
$37.39
You save $6.60
More details
8
Required: 1
WIRE HARNESS ASSY
Price unavailable
Starter Relay Assembly
9
Yamaha Motors
Starter Relay Assembly3MW-81940-01-00
Required: 1
STARTER SWITCH ASSY
Supersedes: 3MW-81940-00-00
Cross Ship
Leaves in 2-5 days
$89.99
$76.49
You save $13.50
More details
Oil Level Gauge Assembly
10
Yamaha Motors
Oil Level Gauge Assembly53L-85720-10-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 3VL-H5720-10-00
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
11
Required: 1
RESISTOR ASSY
Price unavailable
Pan Head Screw
12
Yamaha Motors
Pan Head Screw98580-06010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98501-06010-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 3
CLAMP
Price unavailable
14
Required: 2
CLAMP
Price unavailable
15
Required: 4
SENDER UNIT ASSY, FUEL METER
Price unavailable
16
Required: 1
GASKET, SENDER UNIT
Price unavailable
17
Required: 1
HOUSING, FUEL METER
Price unavailable
18
Required: 1
REAR REFLECTOR ASSY
Price unavailable
Flange Nut
19
Yamaha Motors
Flange Nut95707-05500-00
Required: 1
NUT, FLANGE
Supersedes: 95706-05500-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
BOLT
20
Yamaha Motors
BOLT90101-06576-00
Required: 2
BOLT, HEX.
Supersedes: 97311-06008-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
