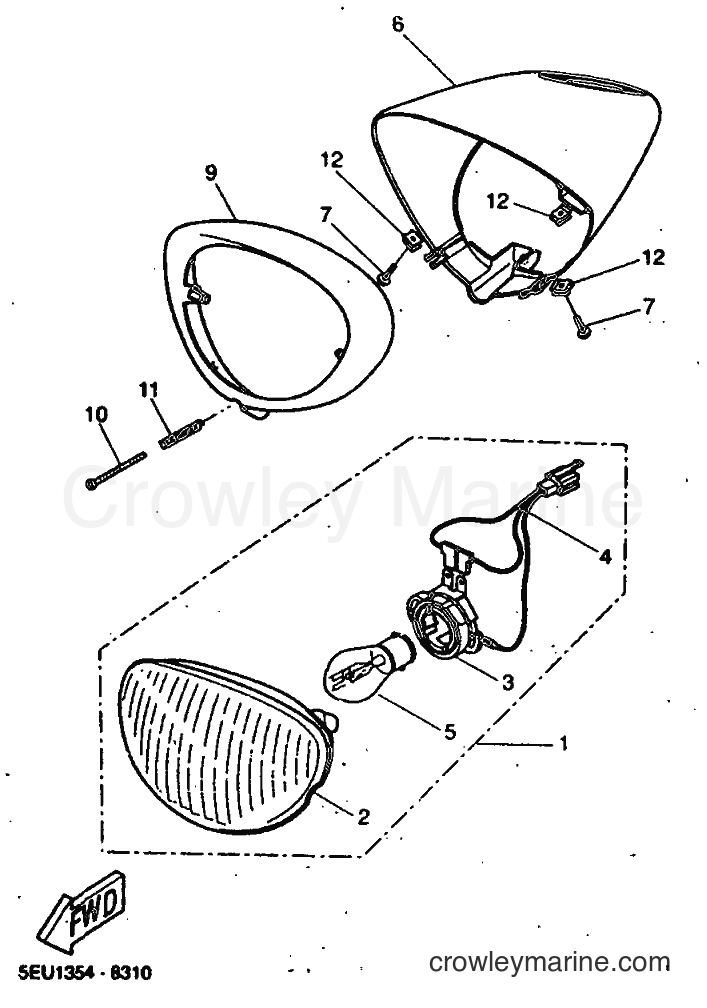

1999 Scooter YH50 - YH50 (5JB2) [020] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YH50 (5JB2) [020] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. LENS ASSY
Price unavailable
3
Required: 1
. SOCKET
Price unavailable
4
Required: 1
. SOCKET CORD ASSY
Price unavailable
5
Required: 1
. BULB, HEADLIGHT
Price unavailable
6
Required: 1
COVER, HEADLIGHT
Price unavailable
6
Required: 1
COVER, HEADLIGHT
Price unavailable
6
Required: 1
COVER, HEADLIGHT
Price unavailable
6
Required: 1
COVER, HEADLIGHT
Price unavailable
Tapping Screw
7
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
9
Required: 1
RIM
Price unavailable
10
Required: 1
SCREW, PAN HEAD
Price unavailable
11
Required: 1
SPRING, SCREW
Price unavailable
Spring Nut
12
Yamaha Motors
Spring Nut90183-05X03-00
Required: 3
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
