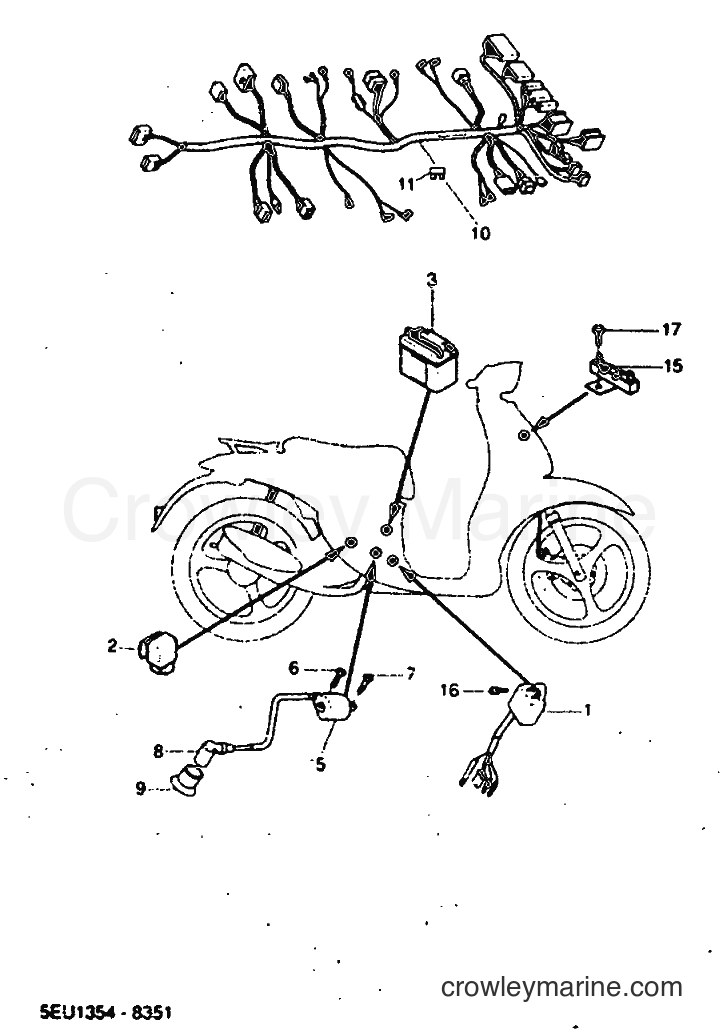

1999 Scooter YH50 - YH50 (5JB2) [030] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YH50 (5JB2) [030] - ELECTRICAL 2
Change View:
CDI UNIT ASSEMBLY
1
Yamaha Motors
CDI UNIT ASSEMBLY3KJ-85540-10-00
Required: 1
C.D.I. UNIT ASSY
Cross Ship
Leaves in 2-5 days
$117.99
$100.29
You save $17.70
More details
2
Required: 1
RELAY ASSY
Price unavailable
BATTERY ASSY
3
Yamaha Motors
BATTERY ASSY9079R-24278-00
Required: 1
BATTERY ASSY
Supersedes: 38E-82110-09-00
Cross Ship
Leaves in 2-5 days
$24.99
$21.24
You save $3.75
More details
BATTERY FOR MERC 200 AND SNOWMOBILE 150E
3
Yamaha Motors
BATTERY FOR MERC 200 AND SNOWMOBILE 150E4CU-H2110-10-00
Required: 1
BATTERY ASSY
Cross Ship
Leaves in 2-5 days
$43.22
$36.74
You save $6.48
More details
IGNITION COIL ASSY
5
Yamaha Motors
IGNITION COIL ASSY3KJ-82310-14-00
Required: 1
IGNITION COIL ASSY
Supersedes: 3KJ-82310-10-00
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
6
Required: 1
BOLT, WASHER BASED
Price unavailable
Hexagon Screw
7
Yamaha Motors
Hexagon Screw90153-06034-00
Required: 1
SCREW, HEXAGON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Plug Cap Assembly
8
Yamaha Motors
Plug Cap AssemblySPC-LB05F-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 3WG-H2370-00-00
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
Plug Cap Seal
9
Yamaha Motors
Plug Cap Seal3WG-H2372-00-00
Required: 1
SEAL, PLUG CAP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
10
Required: 1
WIRE HARNESS ASSY
Price unavailable
11
Required: 1
. FUSE
Price unavailable
15
Required: 1
RESISTOR ASSY
Price unavailable
16
Required: 1
BOLT, HEXAGON SOCKET HEAD
Price unavailable
17
Required: 1
SCREW, BINDING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
