1999 Scooter XC125TR - XC125TR (4UT5) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

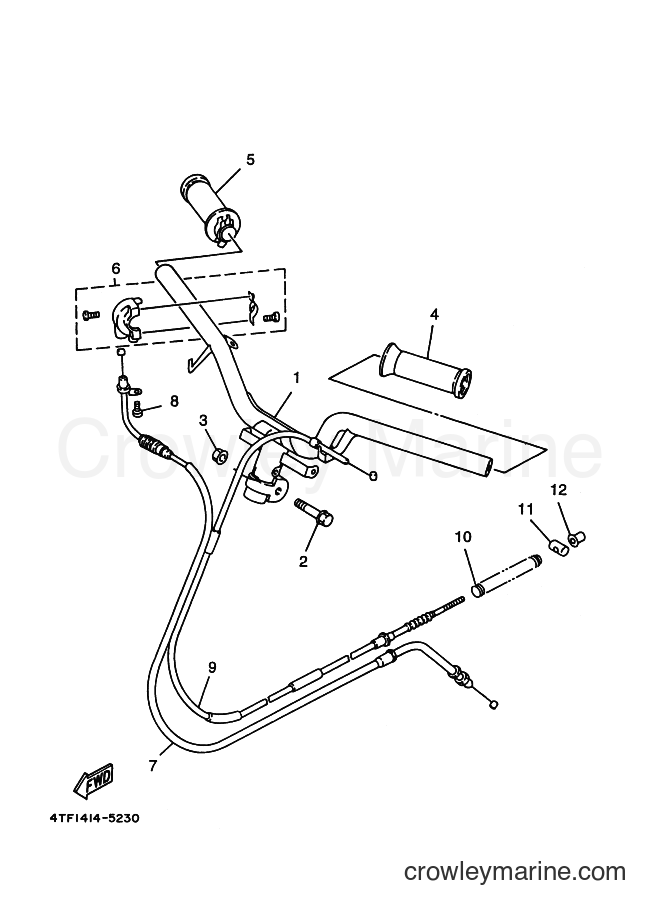

Yamaha Motors XC125TR (4UT5) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-10036-00
Required: 1
BOLT, WASHER BASED
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 1
GRIP
Price unavailable
5
Required: 1
GRIP ASSY
Price unavailable
6
Required: 1
CABLE CONNECTOR CAP ASSY
Price unavailable
7
Required: 1
CABLE, THROTTLE 1
Price unavailable
8
Required: 1
SCREW, PAN HEAD
Price unavailable
9
Required: 1
CABLE, BRAKE
Price unavailable
Compression Spring
10
Yamaha Motors
Compression Spring90501-16831-00
Required: 1
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
