1999 Scooter XC125TR - XC125TR (4THF) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

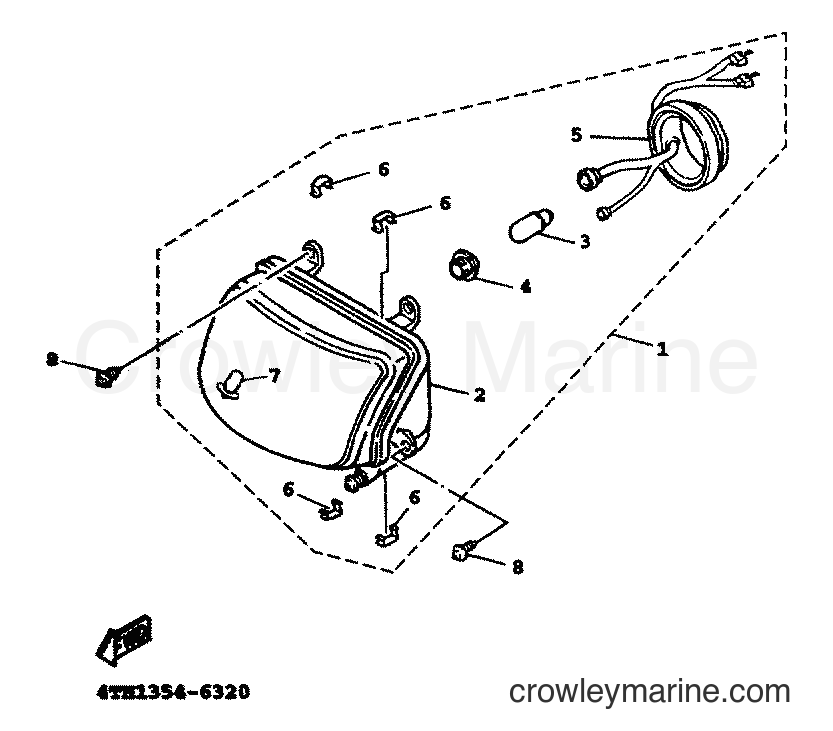

Yamaha Motors XC125TR (4THF) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. HEADLIGHT UNIT ASSY
Price unavailable
3
Required: 1
. BULB, HEADLIGHT
Price unavailable
4
Required: 1
. FITTING PLATE, BULB
Price unavailable
5
Required: 1
. COVER
Price unavailable
6
Required: 4
. CLIP
Price unavailable
7
Required: 1
BULB
Price unavailable
Truss Screw
8
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
