All diagrams for this model

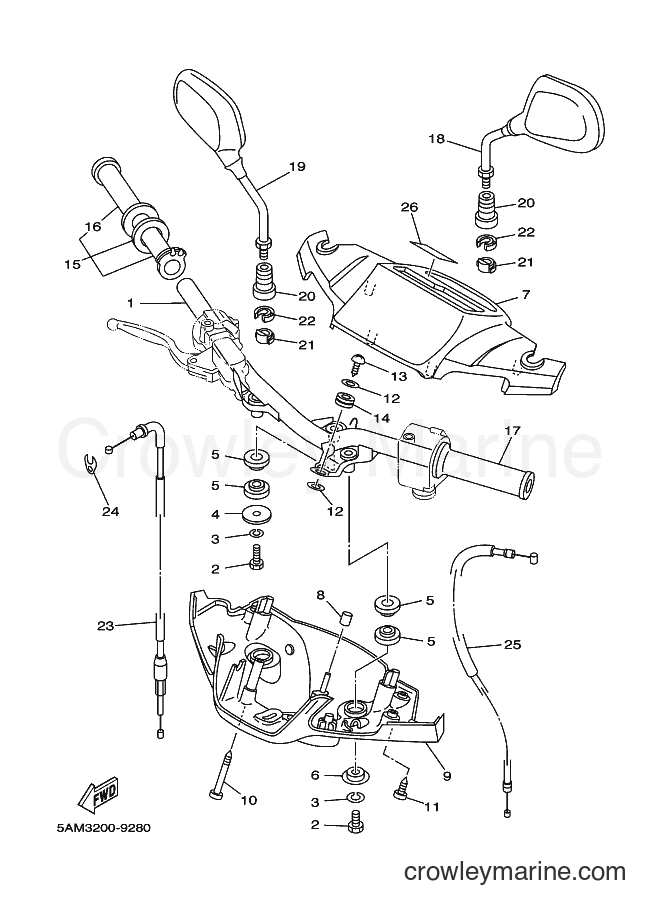

1999 Scooter T105E - T105E (5AM4) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T105E (5AM4) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE
Price unavailable
Bolt
2
Yamaha Motors
Bolt97017-08016-00
Required: 3
BOLT
Supersedes: 97007-08016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Spring Washer
3
Yamaha Motors
Spring Washer92907-08100-00
Required: 3
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
4
Yamaha Motors
Plate Washer90201-08612-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
5
Required: 6
DAMPER
Price unavailable
6
Required: 2
WASHER
Price unavailable
7
Required: 1
COVER, UPPER
Price unavailable
7
Required: 1
COVER, UPPER
Price unavailable
8
Required: 1
DAMPER, LOCATING 1
Price unavailable
9
Required: 1
COVER, LOWER
Price unavailable
9
Required: 1
COVER, LOWER
Price unavailable
Tapping Screw
10
Yamaha Motors
Tapping Screw90167-04033-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$1.38
$1.17
You save $0.21
More details
WASHER
12
Yamaha Motors
WASHER92907-10200-00
Required: 2
WASHER, PLAIN
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Truss Screw
13
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
GROMMET, WATER TUBE (UPPER)
14
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-01385-00
Required: 1
GROMMET
Supersedes: 90480-01321-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
15
Required: 1
GRIP ASSY
Price unavailable
16
Required: 1
. GRIP (RIGHT)
Price unavailable
17
Required: 1
GRIP
Price unavailable
18
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
19
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
20
Required: 2
BOOT 1
Price unavailable
21
Required: 2
GROMMET
Price unavailable
22
Required: 2
WASHER
Price unavailable
23
Required: 1
CABLE, THROTTLE 1
Price unavailable
24
Required: 1
HOLDER
Price unavailable
25
Required: 1
CABLE, STARTER 1
Price unavailable
26
Required: 1
EMBLEM
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
