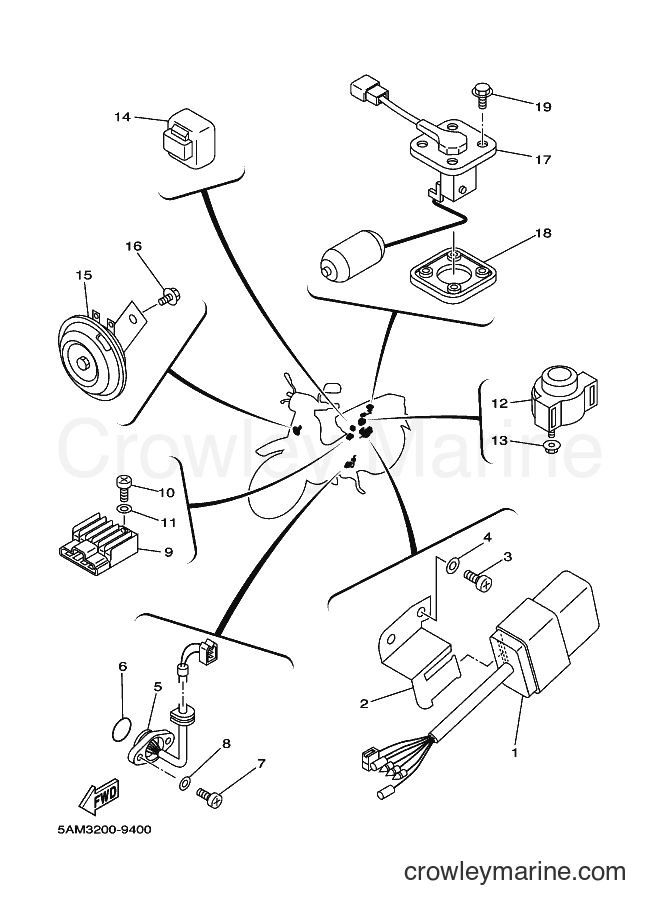

1999 Scooter T105E - T105E (5AM3) [010] ELECTRICAL 2 diagram
![Yamaha Motors T105E (5AM3) [010] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/4rzVDF0S.png)
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
BRACKET, C.D.I. UNIT
Price unavailable
3
Yamaha Motors
Pan Head Screw98517-06020-00
Required: 1
SCREW, PAN HEAD
In stock
Only 5 remaining
$2.00
You save $0.35
4
Yamaha Motors
Plate Washer92907-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
5
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
In stock
Only 5 remaining
$8.07
You save $1.42
7
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 2
SCREW, PAN HEAD
In stock
Only 4 remaining
$1.53
You save $0.27
8
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
$0.85
You save $0.15
9
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
10
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 1
SCREW, PAN HEAD
$2.96
You save $0.52
11
Yamaha Motors
Plate Washer92907-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
12
Required: 1
STARTER RELAY ASSY
Price unavailable
$0.85
You save $0.15
14
Required: 1
FLASHER RELAY ASSY
Price unavailable
15
Required: 1
HORN
Price unavailable
In stock
Only 4 remaining
$4.67
You save $0.82
17
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
18
Yamaha Motors
Sender Unit Gasket5G3-85753-00-00
Required: 1
GASKET, SENDER UNIT
$16.14
You save $2.85
19
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
