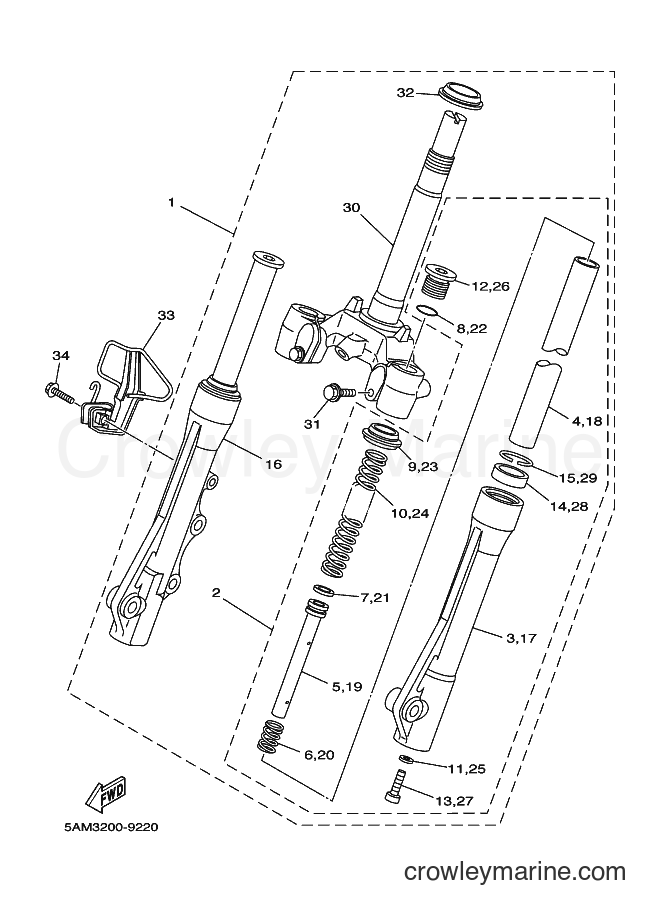

1999 Scooter T105E - T105E (5AM4) [010] FRONT FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T105E (5AM4) [010] - FRONT FORK
Change View:
1
Required: 1
FRONT FORK ASSY
Price unavailable
1
Required: 1
FRONT FORK ASSY
Price unavailable
2
Required: 1
. FRONT FORK ASSY (L.H)
Price unavailable
2
Required: 1
. FRONT FORK ASSY (L.H)
Price unavailable
3
Required: 1
. . TUBE, OUTER (LEFT)
Price unavailable
3
Required: 1
. . TUBE, OUTER (LEFT)
Price unavailable
4
Required: 1
. . INNER TUBE COMP.1
Price unavailable
5
Required: 1
. . CYLINDER COMP., FRONT FORK
Price unavailable
6
Required: 1
. . SPRING, SUB
Price unavailable
7
Required: 1
. . RING, PISTON
Price unavailable
8
Required: 1
. . O-RING
Price unavailable
9
Required: 1
. . SEAL, DUST
Price unavailable
10
Required: 1
. . SPRING, FRONT FORK
Price unavailable
Tank Cap Gasket
11
Yamaha Motors
Tank Cap Gasket509-23158-L0-00
Required: 1
. . GASKET
Supersedes: 509-F3158-L0-00
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details
12
Required: 1
. . BOLT, CAP
Price unavailable
13
Required: 1
. . BOLT, HEXAGON SOCKET HEAD
Price unavailable
14
Required: 1
. . OIL SEAL
Price unavailable
15
Required: 1
. . CLIP, OIL SEAL
Price unavailable
16
Required: 1
. FRONT FORK ASSY (R.H)
Price unavailable
16
Required: 1
. FRONT FORK ASSY (R.H)
Price unavailable
17
Required: 1
. . TUBE, OUTER (RIGHT)
Price unavailable
17
Required: 1
. . TUBE, OUTER (RIGHT)
Price unavailable
18
Required: 1
. . INNER TUBE COMP.1
Price unavailable
19
Required: 1
. . CYLINDER COMP., FRONT FORK
Price unavailable
20
Required: 1
. . SPRING, SUB
Price unavailable
21
Required: 1
. . RING, PISTON
Price unavailable
22
Required: 1
. . O-RING
Price unavailable
23
Required: 1
. . SEAL, DUST
Price unavailable
24
Required: 1
. . SPRING, FRONT FORK
Price unavailable
Tank Cap Gasket
25
Yamaha Motors
Tank Cap Gasket509-23158-L0-00
Required: 1
. . GASKET
Supersedes: 509-F3158-L0-00
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details
26
Required: 1
. . BOLT, CAP
Price unavailable
27
Required: 1
. . BOLT, HEXAGON SOCKET HEAD
Price unavailable
28
Required: 1
. . OIL SEAL
Price unavailable
29
Required: 1
. . CLIP, OIL SEAL
Price unavailable
30
Required: 1
. UNDER BRACKET COMP.
Price unavailable
31
Required: 2
. BOLT 1
Price unavailable
BALL RACE
32
Yamaha Motors
BALL RACEB6E-23411-00-00
Required: 1
. RACE, BALL 1
Supersedes: 156-23411-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
33
Required: 1
GUIDE, CABLE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
