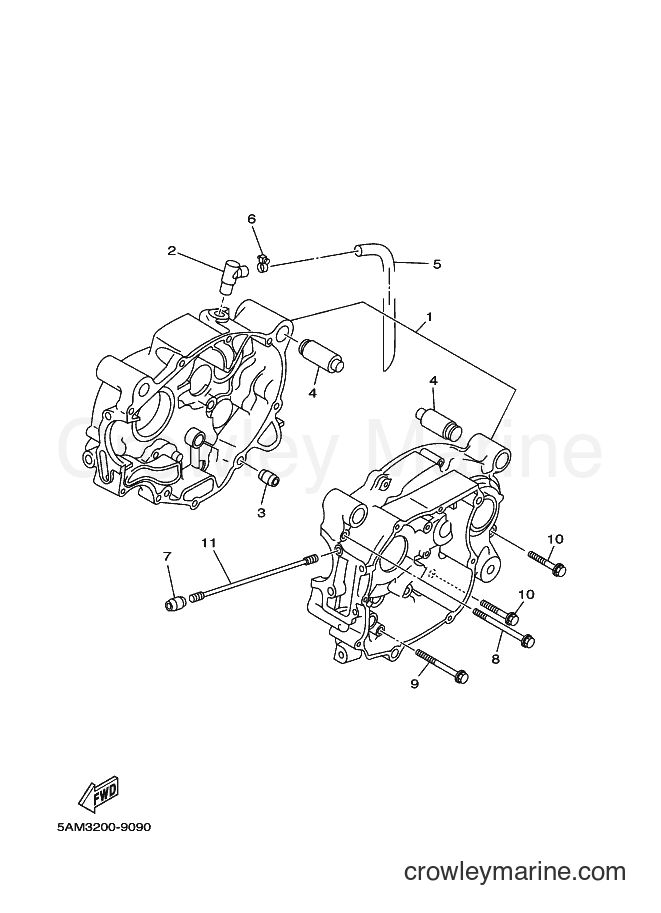

Yamaha Motors T105E (5AM4) [010] - CRANKCASE

Change View:

Required: 1

CRANKCASE ASSY

Price unavailable

Required: 1

BREATHER

Price unavailable

Yamaha Motors

Dowel Pin99530-10114-00

Required: 2

PIN, DOWEL

In stock

Only 1 remaining

~~$2.65~~

$2.25

You save $0.40

More details

Yamaha Motors

ENGINE MOUNT DAMPER4S9-E5316-00-00

Required: 4

DAMPER, ENGINE MOUNT 1

Supersedes: 4GL-15316-00-00

~~$23.99~~

$20.39

You save $3.60

More details

Required: 1

PIPE, BREATHER 1

Price unavailable

Yamaha Motors

Clip (3YX)90467-13133-00

Required: 1

CLIP

Supersedes: 90467-13064-00

~~$9.49~~

$8.07

You save $1.42

More details

Yamaha Motors

Dowel Pin99530-10114-00

Required: 2

PIN, DOWEL

In stock

Only 1 remaining

~~$2.65~~

$2.25

You save $0.40

More details

Yamaha Motors

Pan Screw98507-06080-00

Required: 1

SCREW, PAN HEAD

~~$6.99~~

$5.94

You save $1.05

More details

Yamaha Motors

Pan Head Screw98507-06060-00

Required: 3

SCREW, PAN HEAD

In stock

Only 2 remaining

~~$7.99~~

$6.79

You save $1.20

More details

Yamaha Motors

Pan Screw98507-06040-00

Required: 5

SCREW, PAN HEAD

~~$3.22~~

$2.74

You save $0.48

More details

Required: 4

BOLT, STUD

Price unavailable
