1998 Scooter YP250D - YP250D (5DF1) [090] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

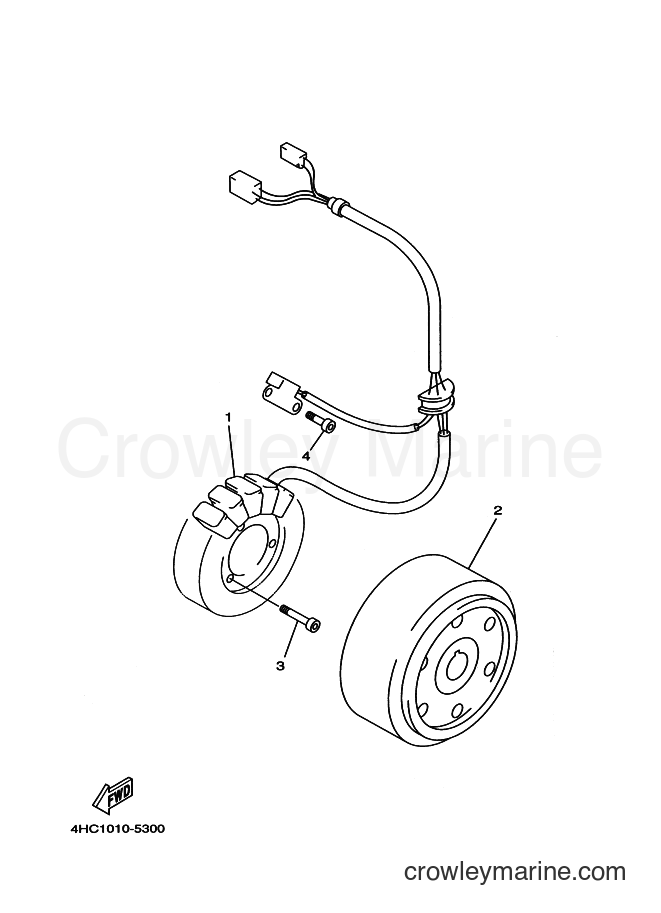

Yamaha Motors YP250D (5DF1) [090] - GENERATOR
Change View:
1
Required: 1
STATOR ASSY
Price unavailable
2
Required: 1
ROTOR ASSY
Price unavailable
3
Required: 3
BOLT, HEXAGON SOCKET HEAD
Price unavailable
BOLT
4
Yamaha Motors
BOLT91317-05012-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
