All diagrams for this model

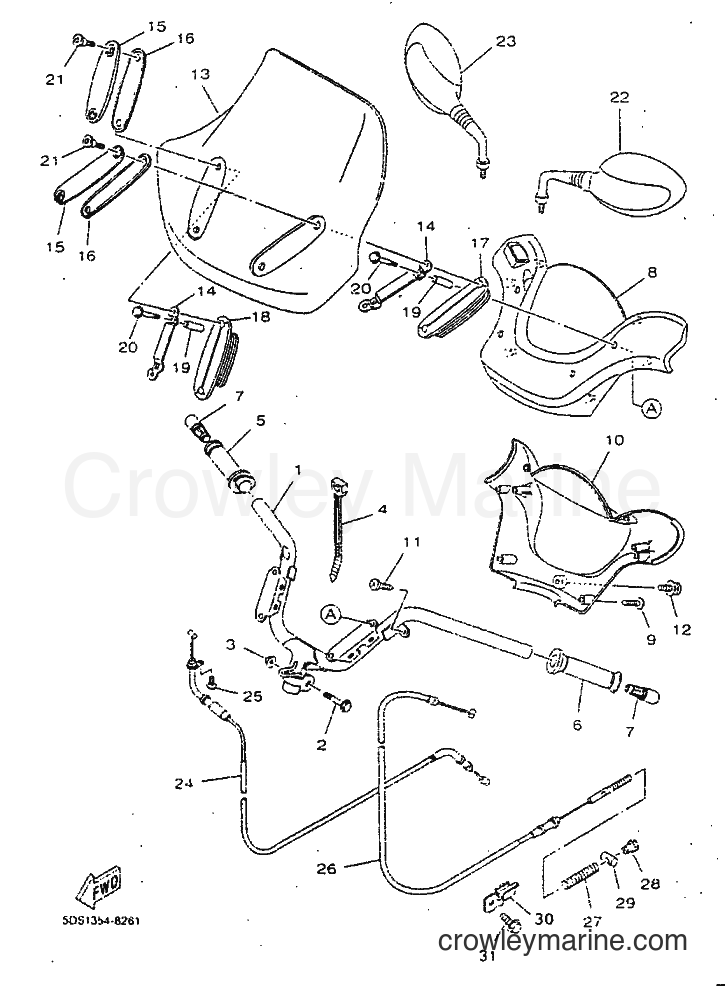

1998 Scooter YP125E - YP125E (5DS8) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP125E (5DS8) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-10036-00
Required: 1
BOLT, WASHER BASED
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
3
Required: 1
NUT, SELF-LOCKING
Price unavailable
4
Required: 1
CLAMP
Price unavailable
5
Required: 1
GRIP ASSY
Price unavailable
6
Required: 1
GRIP
Price unavailable
7
Required: 2
CAP, GRIP
Price unavailable
8
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
9
Required: 6
SCREW, TAPPING
Price unavailable
10
Required: 1
COVER, HANDLEBAR UPPER 2
Price unavailable
11
Required: 2
SCREW, TAPPING
Price unavailable
12
Required: 1
SCREW, WITH WASHER
Price unavailable
13
Required: 1
SCREEN
Price unavailable
14
Required: 2
HOLDER, SCREEN
Price unavailable
15
Required: 2
PLATE, MIRROR FITTING 1
Price unavailable
16
Required: 2
PROTECTOR 1
Price unavailable
17
Required: 1
DAMPER, LOCATING 1
Price unavailable
18
Required: 1
DAMPER, LOCATING
Price unavailable
19
Required: 2
COLLAR
Price unavailable
Socket Bolt
20
Yamaha Motors
Socket Bolt91314-06060-00
Required: 4
BOLT
Supersedes: 91311-06060-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
21
Required: 4
BOLT
Price unavailable
22
Required: 1
REAR VIEW MIRROR ASSY(LEFT)
Price unavailable
23
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
24
Required: 1
CABLE, THROTTLE 1
Price unavailable
26
Required: 1
CABLE, BRAKE
Price unavailable
Compression Spring
27
Yamaha Motors
Compression Spring90501-122E1-00
Required: 1
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
Special Shape Nut
28
Yamaha Motors
Special Shape Nut90179-06411-00
Required: 1
NUT
Supersedes: 90179-06176-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
30
Required: 1
HOLDER, WIRE
Price unavailable
Pan Head Screw
31
Yamaha Motors
Pan Head Screw98511-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98501-06012-00
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
