1998 Scooter YP125E - YP125E (5DS5) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

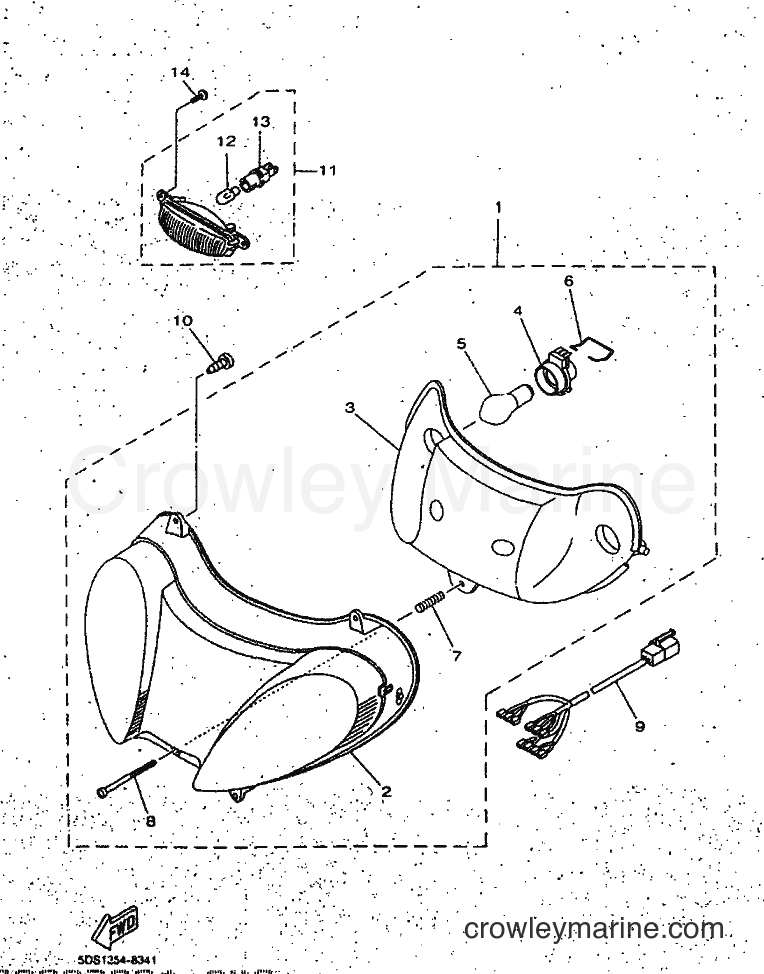

Yamaha Motors YP125E (5DS5) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. HEADLIGHT UNIT ASSY
Price unavailable
3
Required: 1
. REFLECTOR
Price unavailable
4
Required: 2
. SOCKET
Price unavailable
5
Required: 2
. BULB, HEADLIGHT
Price unavailable
6
Required: 2
. SPRING, REFLECTOR
Price unavailable
7
Required: 1
. SPRING, SCREW
Price unavailable
8
Required: 1
. SCREW, PAN HEAD
Price unavailable
9
Required: 1
HOLDER, SOCKET
Price unavailable
10
Required: 4
SCREW, TAPPING
Price unavailable
11
Required: 1
PILOT LIGHT ASSY
Price unavailable
12
Required: 1
. BULB
Price unavailable
13
Required: 1
. SOCKET, PILOT LIGHT
Price unavailable
14
Required: 2
SCREW, TAPPING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
