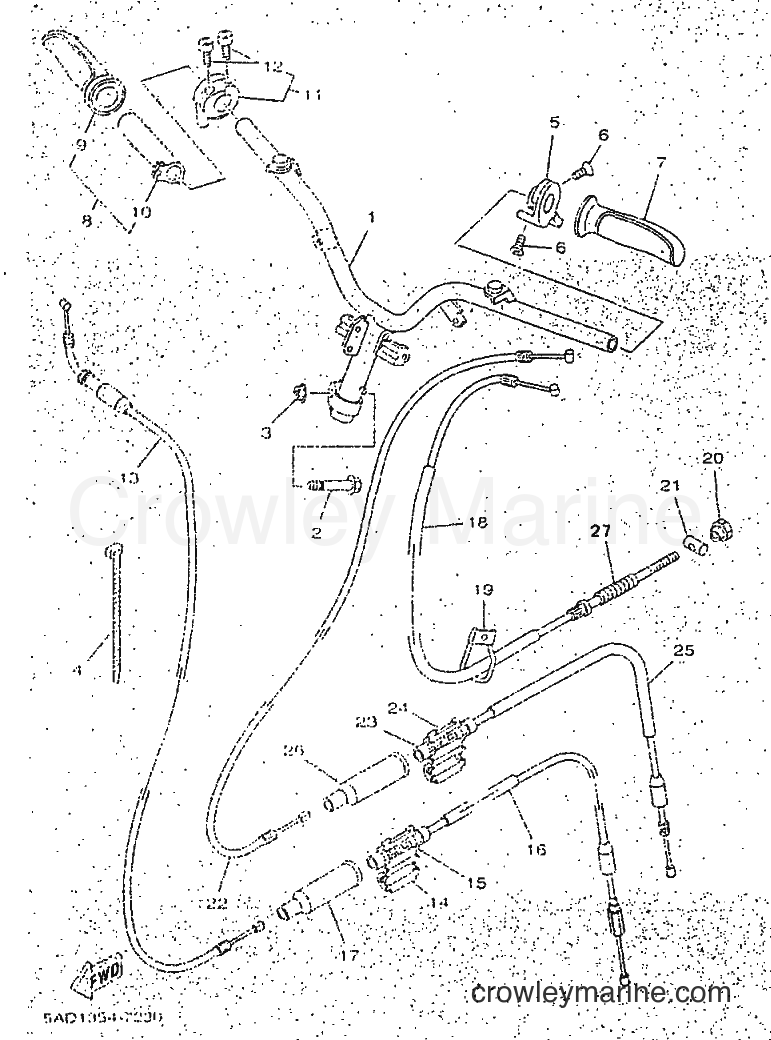

1998 Scooter YN50 - YN50 (5BX1) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YN50 (5BX1) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-10036-00
Required: 1
BOLT, WASHER BASED
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
3
Required: 1
NUT, SELF-LOCKING
Price unavailable
4
Required: 1
CLAMP
Price unavailable
5
Required: 1
CHOKE LEVER COMP.
Price unavailable
6
Required: 2
SCREW, FLAT HEAD
Price unavailable
7
Required: 1
GRIP
Price unavailable
8
Required: 1
GRIP ASSY
Price unavailable
9
Required: 1
GRIP (RIGHT)
Price unavailable
10
Required: 1
TUBE, THROTTLE GUIDE
Price unavailable
11
Required: 1
BODY, THROTTLE
Price unavailable
.BOLT
12
Yamaha Motors
.BOLT91318-05020-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$0.87
$0.74
You save $0.13
More details
13
Required: 1
CABLE, THROTTLE 1
Price unavailable
14
Required: 1
PIECE, CONNECTING
Price unavailable
15
Required: 1
CONNECTOR, CABLE
Price unavailable
16
Required: 1
CABLE, THROTTLE 2
Price unavailable
Rubber Cap
17
Yamaha Motors
Rubber Cap3WG-F6329-00-00
Required: 1
CAP, RUBBER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
18
Required: 1
CABLE, BRAKE
Price unavailable
19
Required: 1
HOLDER, WIRE 2
Price unavailable
Special Shape Nut
20
Yamaha Motors
Special Shape Nut90179-06411-00
Required: 1
NUT
Supersedes: 90179-06176-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
22
Required: 1
CABLE, STARTER 1
Price unavailable
24
Required: 1
PIECE, CONNECTING
Price unavailable
25
Required: 1
CABLE, STARTER 2
Price unavailable
Rubber Cap
26
Yamaha Motors
Rubber Cap3WG-F6329-00-00
Required: 1
CAP, RUBBER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
27
Required: 1
SPRING, COMPRESSION
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
