1998 Scooter T105E - T105E (4YS1) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

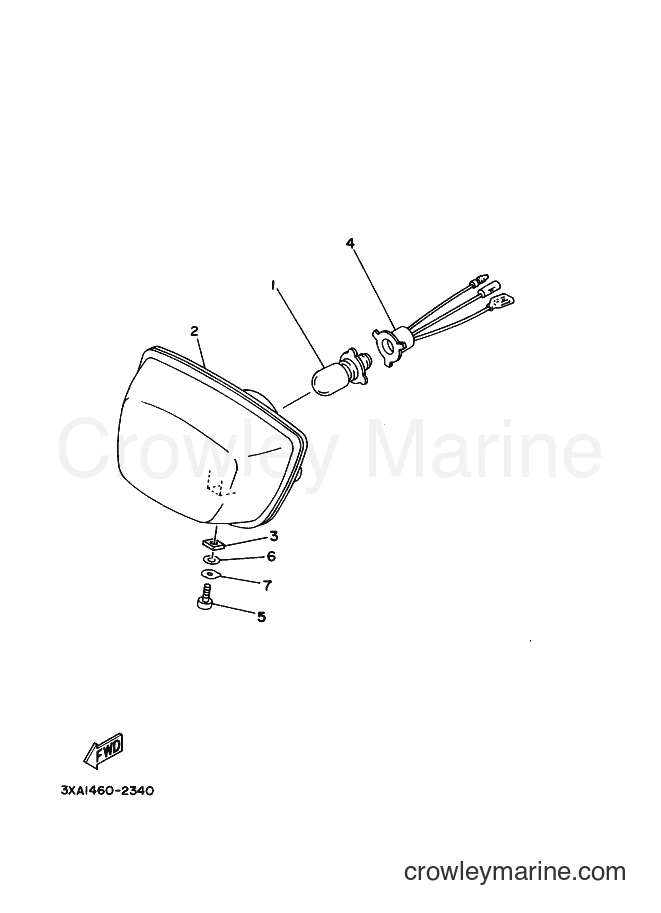

Yamaha Motors T105E (4YS1) [010] - HEADLIGHT
Change View:
1
Required: 1
BULB, HEADLIGHT (12V-30/30W)
Price unavailable
2
Required: 1
LENS ASSY
Price unavailable
3
Required: 1
NUT
Price unavailable
4
Required: 1
SOCKET CORD ASSY
Price unavailable
Bolt (4MY)
5
Yamaha Motors
Bolt (4MY)91317-06012-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
6
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
