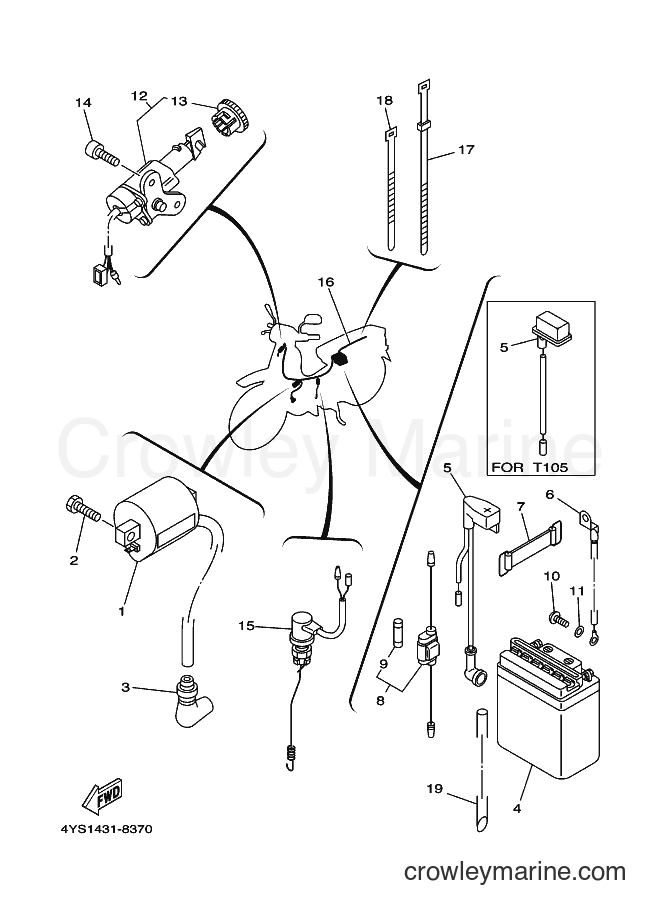

Yamaha Motors T105 (4YS2) [010] - ELECTRICAL 1
Change View:
1
Required: 1
IGNITION COIL ASSY
Price unavailable
Hexagon Bolt
2
Yamaha Motors
Hexagon Bolt97017-06016-00
Required: 2
BOLT
Supersedes: 97007-06016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
PLUG CAP ASSY
3
Yamaha Motors
PLUG CAP ASSY4BP-82370-01-00
Required: 1
PLUG CAP ASSY
Supersedes: 4BP-82370-00-00
Cross Ship
Leaves in 2-5 days
$38.99
$33.14
You save $5.85
More details
4
Required: 1
BATTERY ASSY (GM5Z-3B)
Price unavailable
5
Required: 1
WIRE, PLUS LEAD
Price unavailable
5
Required: 1
WIRE, PLUS LEAD
Price unavailable
6
Required: 1
WIRE, MINUS LEAD
Price unavailable
7
Required: 1
BAND, BATTERY
Price unavailable
8
Required: 1
FUSE HOLDER ASSY
Price unavailable
Fuse (12V/10A)
9
Yamaha Motors
Fuse (12V/10A)27V-82151-00-00
Required: 2
. FUSE (7A)
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Pan Head Screw
10
Yamaha Motors
Pan Head Screw98507-06010-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
12
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
13
Required: 1
CAP, SWITCH
Price unavailable
Bolt (4MY)
14
Yamaha Motors
Bolt (4MY)91317-06012-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
15
Required: 1
STOP SWITCH ASSY
Price unavailable
16
Required: 1
WIRE HARNESS ASSY
Price unavailable
16
Required: 1
WIRE HARNESS ASSY
Price unavailable
17
Required: 4
BAND, SWITCH CORD
Price unavailable
18
Required: 1
BAND
Price unavailable
Hose
19
Yamaha Motors
Hose90445-08684-00
Required: 1
HOSE (L330)
Supersedes: 90445-08170-00
Cross Ship
Leaves in 2-5 days
$5.49
$5.16
You save $0.33
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
