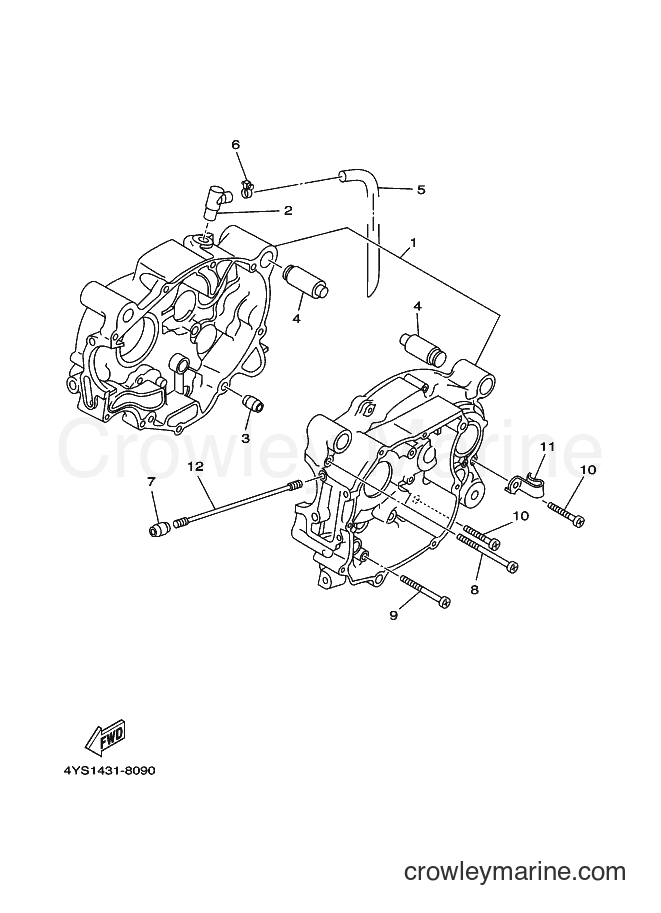

1998 Scooter T105E - T105E (4YS1) [010] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T105E (4YS1) [010] - CRANKCASE
Change View:
1
Required: 1
CRANKCASE ASSY
Price unavailable
1
Required: 1
CRANKCASE ASSY
Price unavailable
2
Required: 1
BREATHER
Price unavailable
4
Required: 4
DAMPER, ENGINE MOUNT 1
Price unavailable
5
Required: 1
PIPE, BREATHER 1
Price unavailable
Clip (3YX)
6
Yamaha Motors
Clip (3YX)90467-13133-00
Required: 1
CLIP
Supersedes: 90467-13064-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Pan Screw
8
Yamaha Motors
Pan Screw98507-06080-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
Pan Screw
10
Yamaha Motors
Pan Screw98507-06040-00
Required: 7
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.22
$2.74
You save $0.48
More details
Clamp
11
Yamaha Motors
Clamp90465-08230-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
12
Required: 4
BOLT, STUD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
