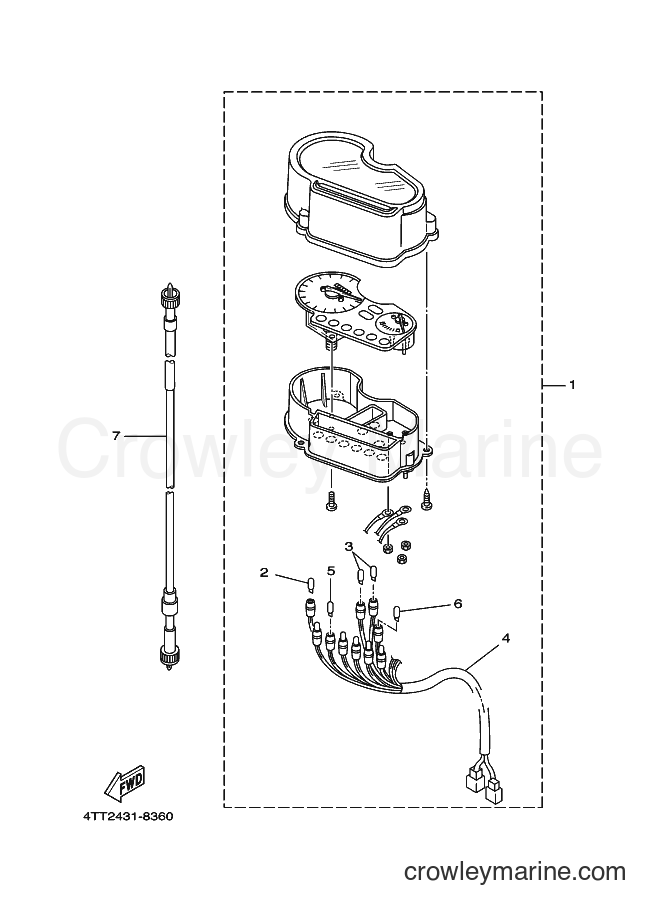

Yamaha Motors JZ120C (4UB2) [010] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 1
. BULB, METER (14V-3W)
Price unavailable
3
Required: 2
. BULB, METER (14V-3W)
Price unavailable
4
Required: 1
. SOCKET CORD ASSY
Price unavailable
5
Required: 6
. BULB, TAILLIGHT (12V-1.7W)
Price unavailable
6
Required: 1
. BULB (12V-1.7W)
Price unavailable
7
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
