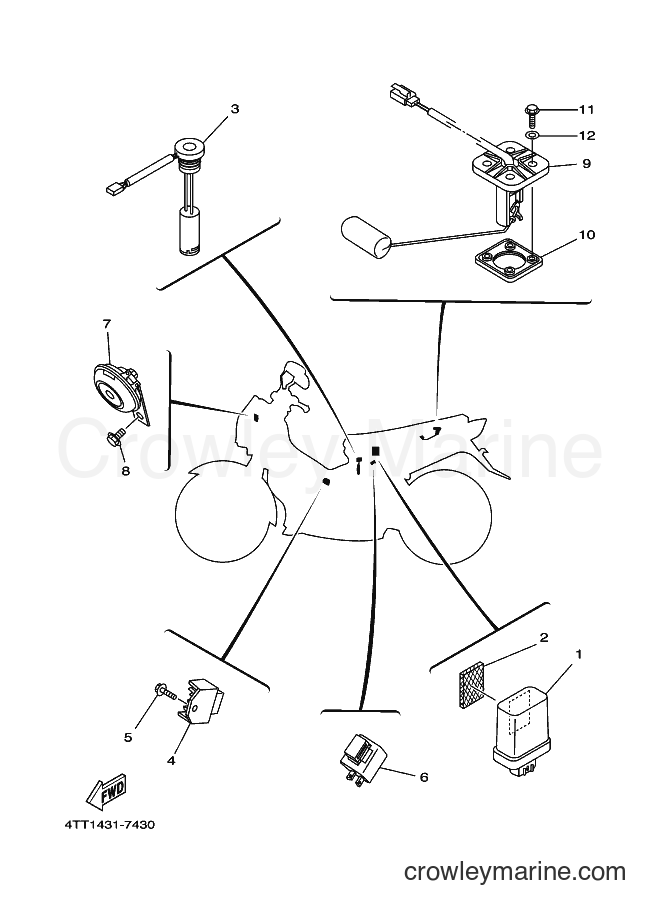

1998 Scooter JZ120B - JZ120B (4TT2) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors JZ120B (4TT2) [010] - ELECTRICAL 2
Change View:
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
DAMPER
Price unavailable
3
Required: 1
OIL LEVEL GAUGE ASSY
Price unavailable
4
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
5
Required: 2
BOLT, FLANGE
Price unavailable
Flasher Relay Assembly
6
Yamaha Motors
Flasher Relay Assembly29G-83350-20-00
Required: 1
FLASHER RELAY ASSY
Cross Ship
Leaves in 2-5 days
$90.99
$77.34
You save $13.65
More details
7
Required: 1
HORN
Price unavailable
FLANGE BOLT
8
Yamaha Motors
FLANGE BOLT9580L-06012-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.55
$0.47
You save $0.08
More details
9
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
10
Required: 1
GASKET, SENDER UNIT
Price unavailable
11
Required: 4
BOLT
Price unavailable
