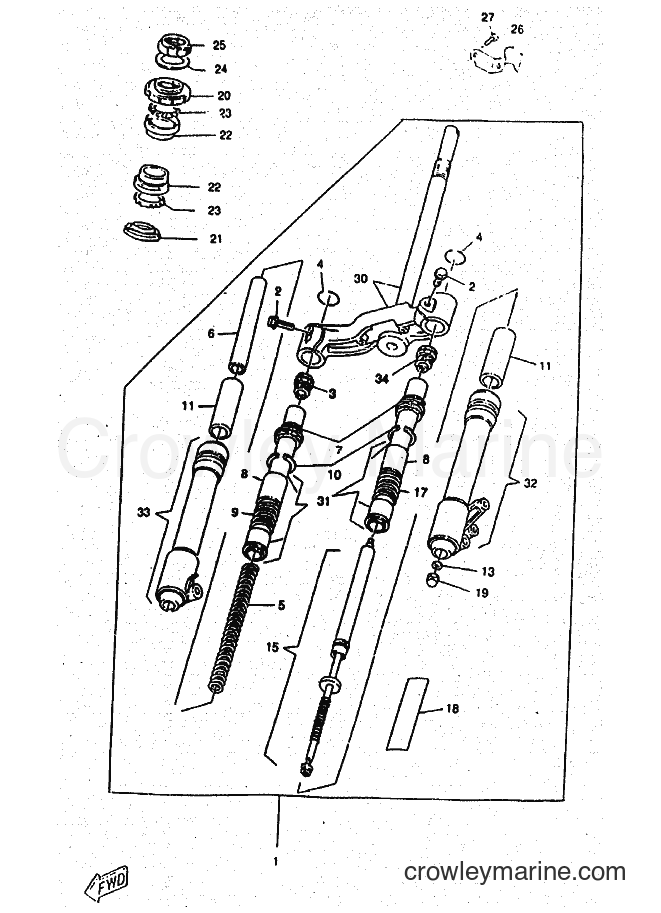

1998 Scooter CW50RSX - CW50RSX (5CD4) [999] FRONT FORK diagram
![Yamaha Motors CW50RSX (5CD4) [999] - FRONT FORK](https://cdn.crowleymarine.com/yamaha/SdEVbl3r.png)
1
Required: 1
FRONT FORK ASSY
Price unavailable
2
Required: 2
.SCREW, SPECIAL
Price unavailable
3
Required: 1
.BOLT, CAP
Price unavailable
4
Required: 2
.RING, SNAP
Price unavailable
5
Required: 1
.SPRING, FRONT FORK
Price unavailable
6
Required: 1
.TUBE INNER
Price unavailable
7
Required: 2
.SEAL, DUST
Price unavailable
8
Required: 2
.GUIDE PLUNGER
Price unavailable
9
Required: 2
.SPRING, REBOUND
Price unavailable
10
Required: 2
.CIRCLIP
Price unavailable
11
Required: 2
.STOPPER BOUND
Price unavailable
13
Required: 2
.WASHER, SPECIAL 1
Price unavailable
15
Required: 1
.DAMPER ASSY
Price unavailable
17
Required: 1
.SPRING
Price unavailable
18
Required: 1
.EMBLEM
Price unavailable
19
Required: 1
.NUT
Price unavailable
20
Required: 1
RACE, BALL 1
Price unavailable
21
Required: 1
RACE, BALL 4
Price unavailable
22
Required: 2
RACE, BALL 2
Price unavailable
23
Required: 2
PLANE BEARING, STEERING
Price unavailable
24
Required: 1
WASHER
Price unavailable
25
Required: 1
NUT, FITTING 1
Price unavailable
26
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
In stock
Only 4 remaining
$4.67
You save $0.82
30
Required: 1
.UNDER BRACKET COMP.
Price unavailable
31
Required: 2
.TUBE, INNER 1
Price unavailable
32
Required: 1
.TUBE, OUTER 1 LEFT
Price unavailable
33
Required: 1
.TUBE, OUTER 2 RIGHT
Price unavailable
34
Required: 1
.BOLT, CAP
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
